What Is Plastic Sheet Extrusion Machine?
A plastic sheet machine, also known as a plastic sheet extrusion machine, is specialized equipment used to produce plastic sheets from various types of plastic materials. The machine operates by melting plastic granules or pellets and then forming them into continuous sheets of uniform thickness and width.
Fast and efficient
The plastic sheet extrusion machine is very good in the extrusion process and steadily produces many plastic items. It is a fast method of efficiently producing plastic pipes and other plastic products. The plastic production line is a machine-based process, that's why it is faster to perform.
Extrusion machines are efficient in different ways, such as;
●It involves producing various shapes and lengths of plastic pipes through the production line. So it is efficient in producing a large volume of plastic items simultaneously.
●It efficiently utilizes most feeding materials to convert them into a number of products without wasting them.
Manufacturing products with varying textures and color
A plastic sheet extrusion machine is beneficial because it can produce products of varying textures and colors in a single run. The capacity to produce products of different shapes with a variety of colors and textures is because of the sophisticated extrusion machinery.
●Different shapes of products are made by shaping the cooling system of the machine. The machine assembles the manufacturing materials either by taking more or less feed to make the products of varying thicknesses.
●Feeding material with varying quantity and quality makes products with variable textures.
●The sophisticated machinery has a dying end which gives products different colors.
Cost-effective process
Plastic sheet extrusion machine involves a cost-effective extrusion process. It is because of the molding frame or system of the plastic extrusion machinery. Molding frame involves melting and cooling of the feeding material again and again, which;
● Avoid the wastage of manufacturing materials and
● Recycling the raw material by repeatedly cooling and melting the shaping tool.
Consistent cross-sectioned manufacturing
One of the most beneficial features of the plastic sheet extrusion machine is the ability to produce flexible plastic products via consistent cross-section. The manufactured products are flexible till the cross-section remains unchanged and helps to produce plastic sheets.
Manipulations after extrusion
Plastic sheet extrusion machine is uniquely beneficial in providing final products that can still be remolded. It is because the product, when extracted from the extruder, is still hot, so it could be molded into other shapes to produce various products from the single run.

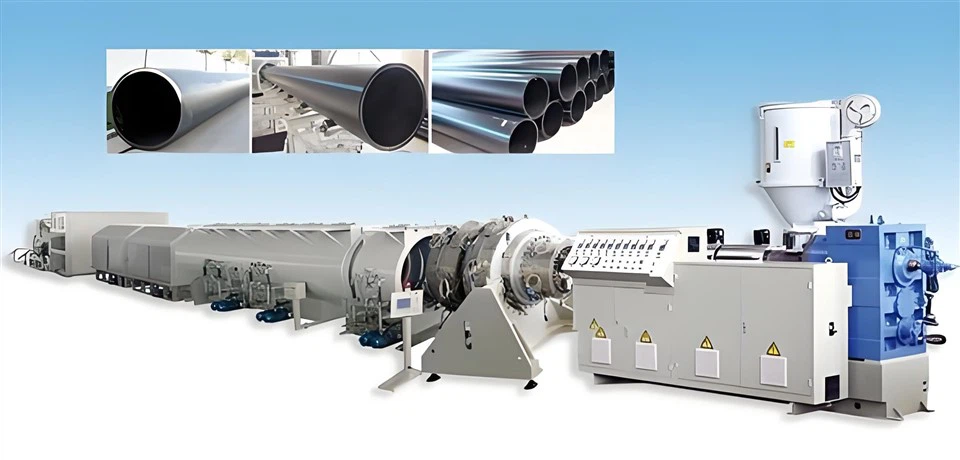

Introduction HDPE pipe production lines are engineered systems designed to manufacture high-quality HDPE pipes. These lines integrate advanced machinery and technology to ensure the pipes produced meet stringent quality standards. The key components of an HDPE pipe production line include:...

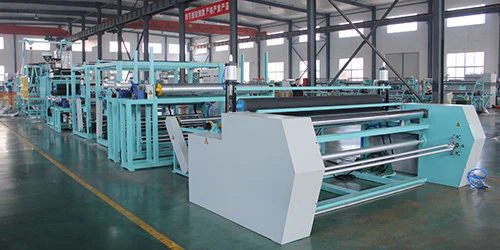

The geonet is a new type of drainage material widely used in civil engineering and environmental projects. It has excellent drainage performance and structural stability, effectively addressing groundwater discharge and soil erosion issues. The geonet production line is essential for producing this high-performance drainage material.

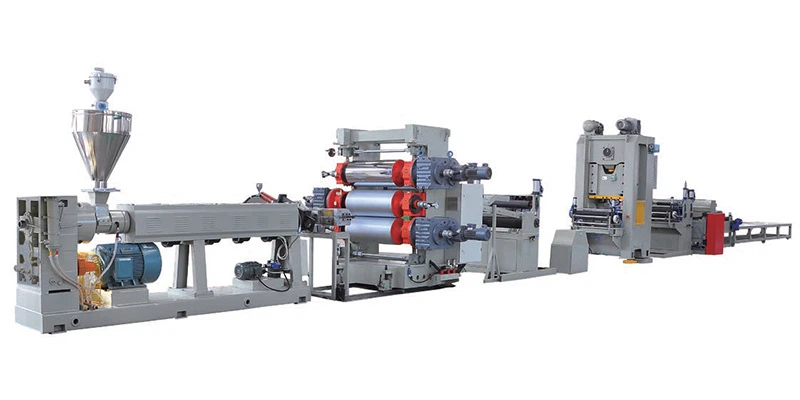

Overview of the Plastic Geocell Production Line The plastic geocell production line is a highly automated production system designed to produce high-quality plastic geocells. These lines utilize advanced technology and equipment to ensure the geocells are strong, durable, and consistent. The...

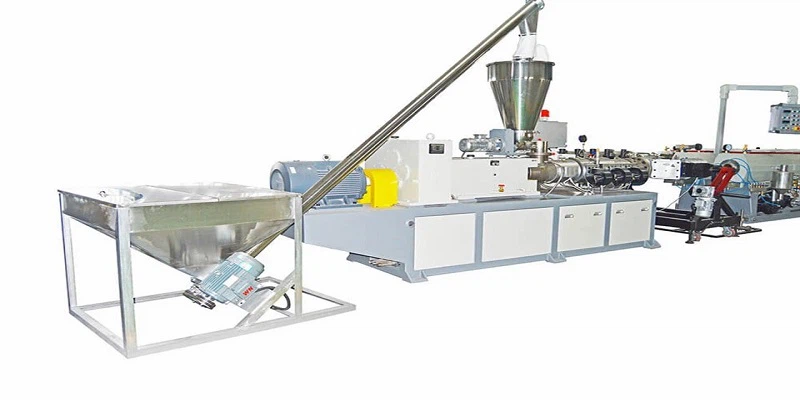

PVC (Polyvinyl Chloride) pipes are a crucial component in various industries due to their durability, chemical resistance, and versatility. The production of these pipes requires a specialized production line that ensures high-quality output and efficient manufacturing processes.

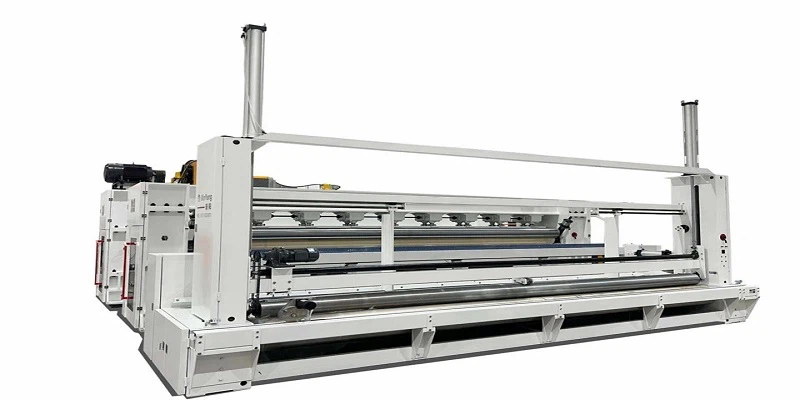

Process flow of geotextile production line,the production process of geotextile mainly includes steps such as raw material preparation, spinning, mesh forming, reinforcement, post-treatment, and testing and packaging.

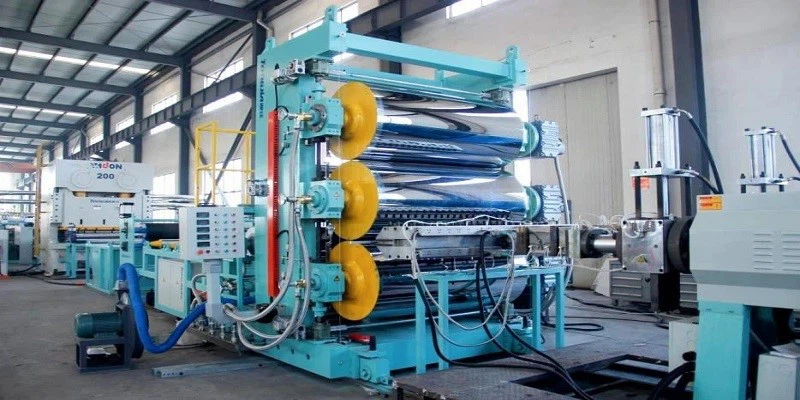

The geogrid production line processes polymer materials into high-strength, stable mesh products through a series of mechanical equipment and processes.

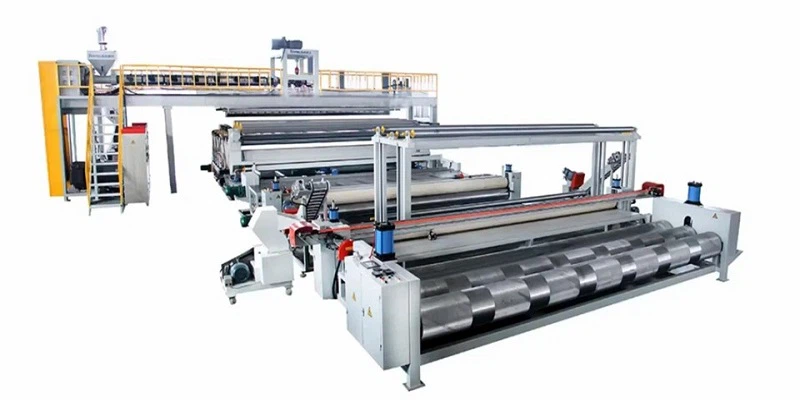

The geomembrane production line is a highly efficient equipment specially designed for producing geomembranes. Through a series of processes, raw materials are processed into geomembrane products with different specifications and properties. This production line is characterized by high...

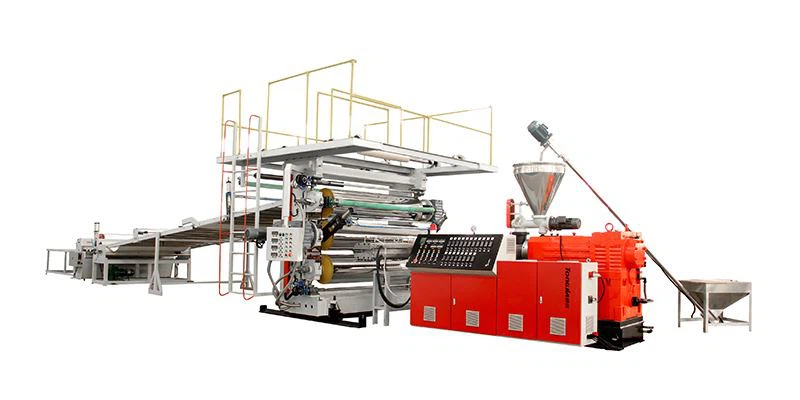

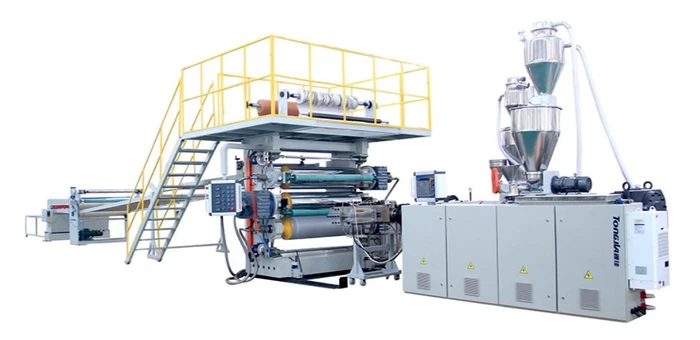

Plastic Sheet Extrusion Machine
The plastic sheet extrusion machine is essential for producing high-quality sheets from various materials such as PVC, PP, PE, and PS. With its efficient and stable production capabilities and diverse applications, these machines hold significant importance in packaging, construction, advertising, and electronics.
Single-screw extruders
Featuring a single screw rotating within a barrel, single-screw extruders are generally more affordable and easier to operate.Ideal for consistent, high-volume production of simple profiles like pipes, tubes, sheets, and films. They excel with materials like PVC, PET, and HDPE.
Twin-screw extruders
These extruders utilize two intermeshing screws that rotate within a barrel. This complex design allows for superior mixing and shearing of the plastic melt.Twin-screw extruders excel at handling complex profiles, shear-sensitive materials, and applications requiring precise material distribution. They are ideal for intricate window frames, medical tubing, and color-compounded products.
Non-screw type extruder – ram extruder
A ram extruder is an extruder without a screw. It uses the stamping principle. The material is pushed forward by the strong pushing force of the plunger. The ram plastic extruder extrudes the previously plasticized material from the die with the help of plunger pressure to achieve the molding effect. After the material in the material barrel is extruded, the plunger will return, and the operation will be repeated after a new round of plasticized material is added.
Application of Plastic Sheet Extrusion Machine
Solar industry
Plastic sheet extrusion machine a role in producing components like solar panel frames and encapsulation materials. Extruded plastics' lightweight and durable nature can make them ideal for supporting solar modules. This promotes the solar device's longevity and resistance to environmental elements.
Automotive sector
Plastic sheet extrusion machine is applied in the automotive industry, as it contributes to the production of several automotive parts. Items like weather seals, gaskets, and interior trim components may use these extrusions. Vehicle tubing and hoses for fluid transfer systems also utilize extruded plastic. The manufactured parts offer resistance to chemicals, temperature variations, and UV exposure. This can increase durability in diverse automotive applications.
Appliance manufacturing
The appliance industry benefits from plastic sheet extrusion machine in the production of components such as gaskets, seals, and handles. Extruded plastics provide insulation and sealing properties, enhancing the energy efficiency of appliances. The cost-effectiveness of the extrusion process allows us to produce high volumes of consistent parts. This can help us meet the demands of the appliance market while maintaining quality standards.
Construction industry
Extruded plastic manufacturing is applied in the construction industry. The parts can be seen in windows, doors, and other architectural elements. Extruded plastics are versatile, enabling the production of weather-resistant and thermally efficient profiles. This can contribute to sustainable and energy-efficient building practices. The lightweight nature of extruded plastic components also simplifies installation processes, which may reduce overall construction time.
Medical device manufacturing
Plastic extrusion can be utilized to manufacture tubing, catheters, and various medical device components. The ability to use a wide range of medical-grade plastics helps make sure medical sectors are in compliance with specific regulatory requirements. The extrusion process also fosters complex and intricate profiles, meeting the particular needs of medical applications like microcatheters and guide wires.
Packaging industry
In the packaging industry, companies can use plastic sheet extrusion machine to help produce films, sheets, and other profiles used for packaging materials. The versatility of extruded plastics allows for the creation of packaging with varying thicknesses, barrier properties, and surface finishes. This adaptability makes plastic extrusion a suitable choice for developing packaging solutions that protect products, extend shelf life, and enhance visual appeal.
Components of Plastic Sheet Extrusion Machine
Die head
The molten plastic is forced through the die head, which shapes it into a flat, continuous sheet. The die design determines the sheet's width and thickness.
Calendering unit
This unit consists of a series of rollers that further shape, smooth, and ensure the uniform thickness of the plastic sheet. The rollers can also impart surface textures if needed.
Cooling system
The sheet is cooled using a series of cooling rolls or air cooling systems to solidify the plastic and set its shape.
Haul-off unit
Pulls the sheet through the line at a consistent speed to maintain uniform thickness and surface quality.
Cutting unit
Cuts the continuous sheet into specified lengths or rolls it into large coils for easy handling and transportation.
Winding unit
Collects the finished sheets, either stacking them in sheets or rolling them into coils for packaging and distribution.
How to quickly clean plastic sheet extrusion machine
Water cleaning method
Water cleaning method, using a small amount of water to clean the screw can reduce the cleaning time and avoid the occurrence of crystal points during production, the specific steps are as follows (the following amount is set based on a typical extruder with a screw diameter of 90mm, L/D=28).
(1) Set the screw to rotate at low speed, generally 10r/min.
(2) Add the cleaned head with coated grade LDPE.
(3) The screw runs at high speed for about 10min, so that LDPE completely replaces the original material.
(4) Insert a plastic pipe into the raw material of the hopper, close to the screw and slowly and continuously inject 100~200ml of water.
(5) After a few minutes, first foaming starts from the middle of the melt curtain, and then develops to full foaming,
(6) When the foaming process is over, the melt becomes clear and clean, after 15~20min, reduce the screw speed and add new materials.
(7) Complete the operation and start production.
Resin cleaning
Replace light-colored resin with high-viscosity resin; Timely maintenance of equipment; Keep material handling equipment clean; Use an intermediate resin to fill the difference in processing temperature (for example, when replacing PA with POM, PS can be used as the cleaning material).
In general, powdered or crushed cast acrylic resins and polyethylene-based materials are the main clear materials. In fact, cast acrylic resins are suitable for cleaning any resin. For the cleaning of extruders, special cleaning materials are usually required, and sometimes die heads, filters, etc. need to be disassembled, polyethylene-based compounds usually contain release agents, often used to clean "soft" thermoplastics (polyolefins, styrene, polyvinyl chloride, etc.). For extruders, it is sometimes inapplicable due to many requirements and restrictions. The table below shows the cleaning materials selected for different materials.
In addition to regular and preventive maintenance cleaning, plastic sheet extrusion machines should be sealed with heat-stable screw cleaners, especially on weekends or holidays. During downtime, oxygen in the barrel can cause residual polymer degradation and carbonization, resulting in extended downtime or even scrapping of the plastic sheet extrusion machine. The screw cleaner protects the screw and barrel from contamination during downtime and allows the injection moulding machine to quickly enter production mode after the holidays.
●The plastic sheet extrusion machine should be placed in a ventilated position to ensure the heat dissipation of the motor and extend its life; the machine should be well grounded.
●Regularly check the tool screws. After using the new machine for 1 hour, use tools to tighten the movable knife, the fixed knife screw, and the fixation between the tool holder: the bearing should be regularly filled with lubricant to ensure the lubricity between the bearings; In order to ensure the sharpness of the cutting tool, the tool should be checked frequently to ensure its sharpness and reduce unnecessary damage to other parts caused by the blunt blade; regularly check whether the belt is loose and adjust it in time.
●Restart the strengthening blade before starting the second time, remove the remaining scraps in the machine room to reduce the starting resistance, open the inertia set and the pulley set regularly, and clear the ash outlet under the flange, which is discharged from the crusher chamber The powder enters the shaft bearing.
●When replacing parts and changing tools, the gap between the movable knife and the fixed knife: 0.8MM for crushers above 20HP is better, and 0.5MM for crushers below 20HP is better. The thinner the recycled material, the larger the gap.
Plastic sheet extrusion machine completes all the above processes through a barrel with a screw and a spiral channel. The pellets enter the barrel from the hopper at one end of the barrel and are conveyed to the other end of the barrel by the screw. For sufficient pressure, the depth of the thread decreases with the distance from the hopper. The external and internal heat produced by the friction between the plastic and the screw softens and melts the plastic. Different polymers and different applications usually have different design requirements for plastic extruders. Many options involve special mixing devices along the screw, cooling and heating of the melt, or relative changes in the clearance between the screw and the barrel, the number of screws, etc. For example, a twin screw extruder machine can mix the melt more fully than a single-screw plastic extruder. Series extrusion is a process in which the melt extruded by a plastic extruder is used as the raw material for sheet extruder machines, usually used for the production of extruded polyethylene foam.
Our Factory
Our company is a Chinese company that provides anti-seepage solutions, products, and services for geosynthetics. Its main application areas include the landfill, storage, and management of solid, liquid, and gaseous hazardous waste in mining, petrochemicals, reservoirs, roads, tunnels, and aquaculture. The company's S team was established in 2002; The International Trading Company was established in 2023. For 21 years, we have been committed to producing and developing innovative geosynthetic anti-seepage products. The main products of the company are geotextile membrane, Geotextile, geogrid, geocell, geotextile composite drainage network, geotextile composite clay lining and other geotextile products.
