Geogrids are reinforcement materials widely used in civil engineering, road construction, and infrastructure projects. They feature high strength, durability, and excellent tensile properties. This article will provide a detailed introduction to the geogrid production line, including its components, working principles, technical advantages, specifications, and application cases to offer comprehensive information to customers and potential buyers.

Introduction to Geogrids

Definition of Geogrids

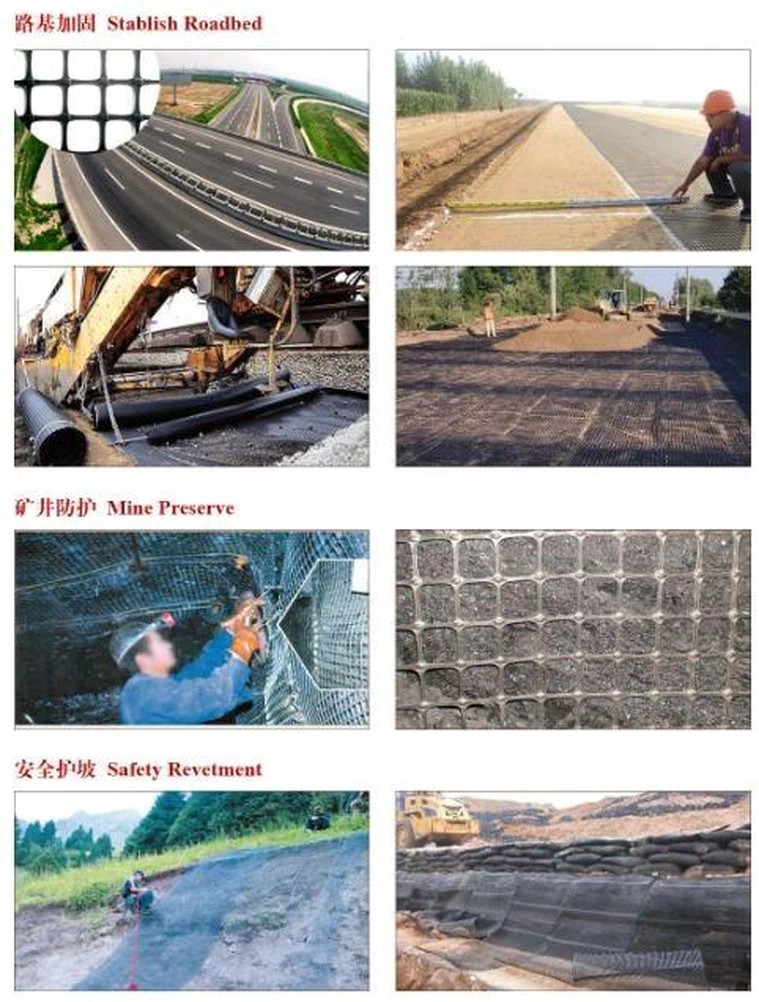

Geogrids are mesh materials made from polymer materials (such as polypropylene, polyethylene, etc.) through extrusion, stretching, or weaving processes. They are mainly used for soil reinforcement, load distribution, improving foundation stability, and reducing foundation settlement. Due to their excellent performance and broad application prospects, geogrids have become an indispensable part of geosynthetics.

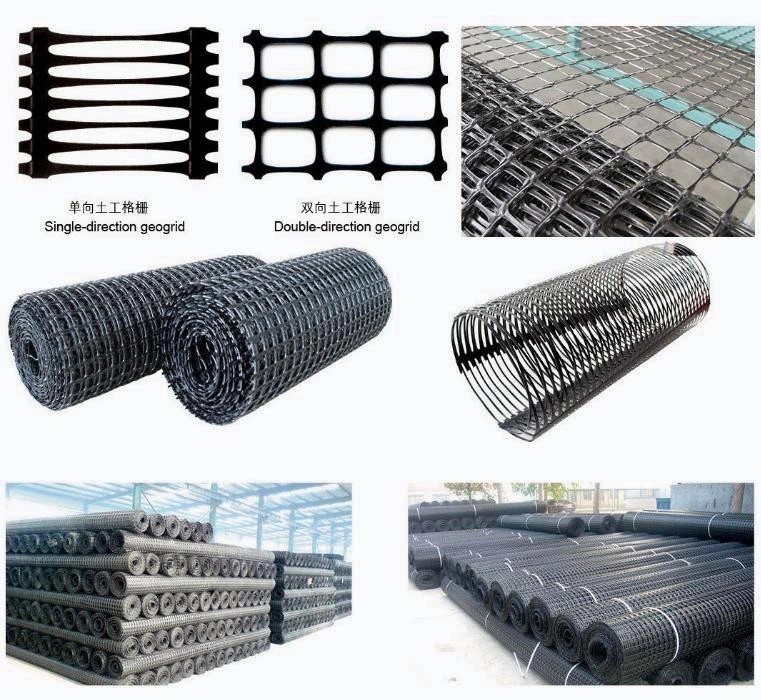

Classification of Geogrids

According to manufacturing processes and materials, geogrids can be classified into the following categories:

Uniaxial Geogrid: Made by stretching polymer sheets in one direction, featuring high tensile strength and elongation.

Biaxial Geogrid: Made by stretching polymer sheets in two directions, providing more balanced mechanical properties.

Woven Geogrid: Made by weaving high-strength fibers (such as glass fiber, polyester fiber), offering good shear resistance and durability.

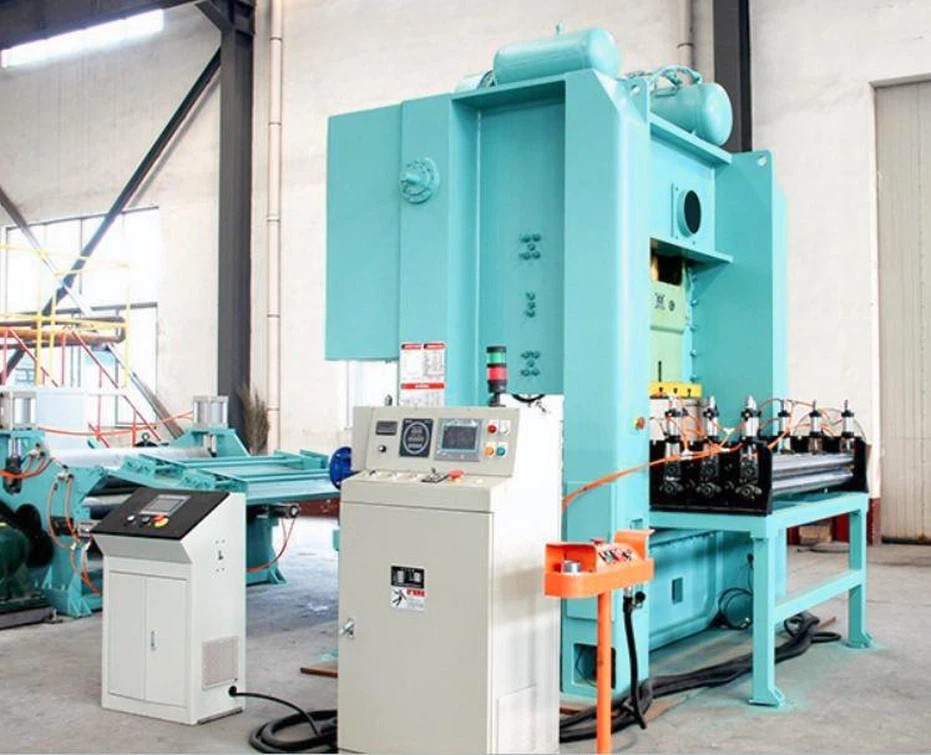

Composition of the Geogrid Production Line

Raw Material Supply System

The raw material supply system is the starting point of geogrid production. It mainly includes:

Raw Material Storage Silos: For storing polypropylene, polyethylene, etc.

Metering Equipment: Ensures precise proportioning of raw materials.

Conveying System: Transports raw materials to the extruder.

Extrusion System

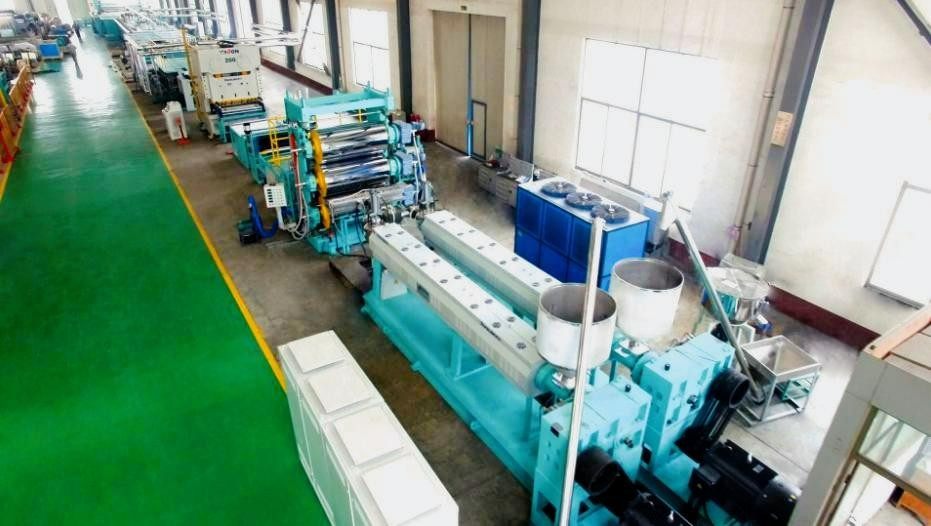

The extrusion system is the core part of geogrid production, mainly including the extruder and die.

Extruder: Heats and plasticizes the raw materials, extruding them through the screw.

Die: Controls the width, thickness, and mesh size of the geogrid.

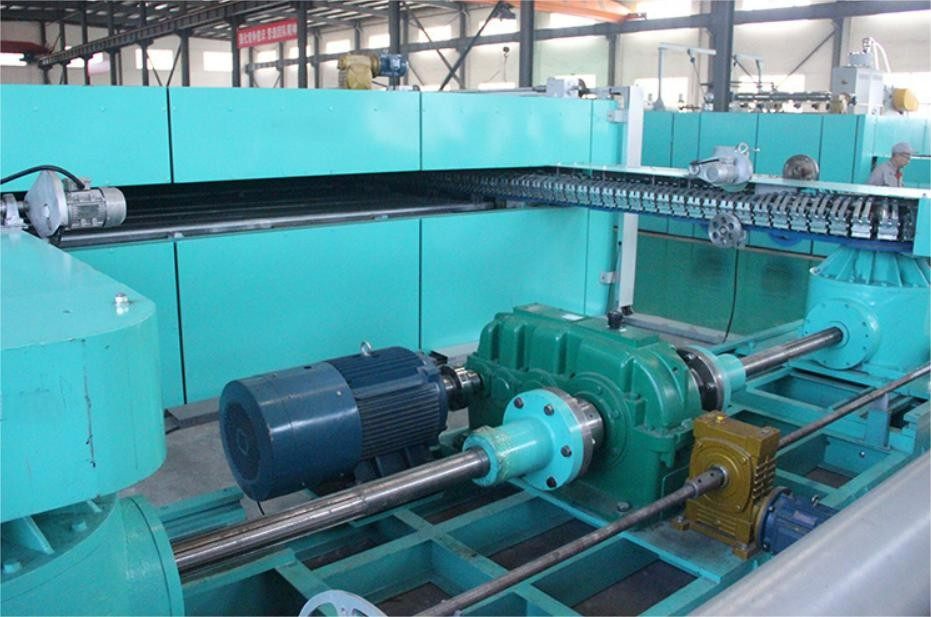

Stretching System

The stretching system stretches the extruded material uniaxially or biaxially to improve its tensile strength and elongation.

Preheating Device: Preheats the material to ensure good stretching properties.

Stretching Device: Stretches the material at specific temperatures and speeds.

Cooling System

The cooling system cools and shapes the stretched material to ensure stable dimensions and mechanical properties.

Cooling Water Tank: Cools the material with circulating cooling water.

Air Cooling Device: Further cools the material using airflow.

Winding System

The winding system rolls the produced geogrid into rolls for easy transportation and storage.

Winder: Rolls the geogrid into rolls of different diameters and lengths as required.

Automatic Cutting Device: Cuts the geogrid automatically to the set length.

Working Principles of the Geogrid Production Line

The geogrid production line processes polymer materials into high-strength, stable mesh products through a series of mechanical equipment and processes. Its main working principles are as follows:

Raw Material Preparation: Mix polymer materials (such as polypropylene, polyethylene, etc.) proportionally and convey them to the extruder through metering equipment.

Extrusion Forming: The extruder heats the raw materials to a plasticized state and extrudes them through the screw to form continuous sheets or mesh structures.

Stretching Treatment: The extruded materials are stretched uniaxially or biaxially to improve their tensile strength and elongation.

Cooling and Shaping: The stretched materials are cooled and shaped through the cooling water tank and air cooling device to ensure stable dimensions and mechanical properties.

Winding and Cutting: The cooled geogrid is rolled into rolls and cut to the set length automatically, forming the final product.

Technical Advantages of the Geogrid Production Line

High-Efficiency Production

The geogrid production line adopts advanced extrusion and stretching technology, offering high production efficiency to meet large-scale production demands. Its high degree of automation reduces manual intervention and production costs.

Superior Product Quality

With precise process control and high-quality raw materials, the produced geogrid features high strength, durability, and excellent tensile properties, meeting various project requirements.

Flexible Production Capability

The production line can adjust product specifications according to customer needs, producing geogrids with different mesh sizes, widths, and thicknesses, offering strong adaptability and flexibility.

Low Energy Consumption and Environmental Protection

The geogrid production line adopts energy-saving and environmentally friendly designs, reducing energy consumption and waste discharge, benefiting environmental protection and sustainable development.

Specifications of the Geogrid Production Line

Extruder Parameters

Screw Diameter: 65-150 mm

Ratio: 28-33:1

Maximum Extrusion Output: 100-500 kg/h

Number of Heating Zones: 5-8

Cooling Method: Air cooling/water cooling

Stretching System Parameters

Stretching Speed: 2-15 m/min

Stretching Ratio: 3-10 times

Preheating Temperature: 120-250°C

Cooling System Parameters

Cooling Water Temperature: 15-25°C

Cooling Water Tank Length: 6-12 m

Air Cooling Device Power: 2-5 kW

Winding System Parameters

Winding Speed: 2-15 m/min

Winding Diameter: 600-1500 mm

Cutting Precision: ±1 cm

Total Production Line Parameters

Production Line Length: 30-60 m

Total Power: 150-300 kW

Operating Personnel: 3-5 people

Annual Output: 2000-10000 tons

Application Cases of the Geogrid Production Line

Case 1: A Large Geosynthetics Company's Geogrid Production Line

A large geosynthetics company located in Nanjing, Jiangsu Province, recently invested in an advanced geogrid production line. This production line features high production capacity and stable product quality, with an annual output of up to 8,000 tons of biaxial geogrids. The company's geogrid products have been widely used in multiple large-scale infrastructure projects both domestically and internationally, receiving unanimous praise from clients.

Case 2: A New Geosynthetics Factory's Initial Investment

A new geosynthetics factory in Jinan, Shandong Province, chose to invest in an advanced geogrid production line. The flexibility of the production line allows it to respond quickly to market demands, producing geogrids of various specifications. The factory's production line has an annual output of 5,000 tons. Through efficient production and high-quality products, the factory quickly established itself in the market and successfully expanded into several international markets.

Case 3: Specific Requirements of an Environmental Engineering Project

A large environmental engineering project in Hangzhou, Zhejiang Province, had strict requirements for the quality and specifications of geogrids. The supplier used its high-end geogrid production line to precisely control each step of the production process, ultimately producing high-performance geogrid products that met the project's requirements. The project's annual production capacity of 3,000 tons satisfied the project's needs, leading to continued collaboration in subsequent projects.

Case 4: Collaborative Research and Development by a Research Institute

A renowned research institute in Beijing collaborated with a geogrid production company to develop new geogrid materials using an advanced production line. Through precise control and flexible adjustments of the production line, they successfully developed new geogrid products with higher tensile strength and durability. The production line's annual output of 4,000 tons of the new product performed excellently in practical applications, bringing significant technological advancements and market value to both the research institute and the production company.

Case 5: Mass Production for an International Infrastructure Project

A large international infrastructure project in an African country required a massive quantity of geogrids. A production company in Shenzhen, Guangdong Province, met the project's mass production needs through its efficient geogrid production line, with an annual output of 10,000 tons. The timely supply and stable quality of the products ensured the project's smooth completion, earning the company a good reputation in the international market and leading to more cooperation opportunities.

If you are looking for efficient, reliable, and environmentally friendly geogrid production equipment, our geogrid production line is your ideal choice. With advanced technology and strict quality control, we ensure that every production line can produce high-quality geogrid products that meet international standards. Our equipment has been validated in numerous large-scale projects worldwide, demonstrating superior performance and stable production capacity.

Contact us to learn more about the geogrid production line. Our professional team will provide customized solutions based on your needs, helping you stand out in the competitive market. Choose our geogrid production line to invest in the future and create brilliance together!

If you have any questions or need further information about our products, please feel free to contact us. We look forward to cooperating with you!
