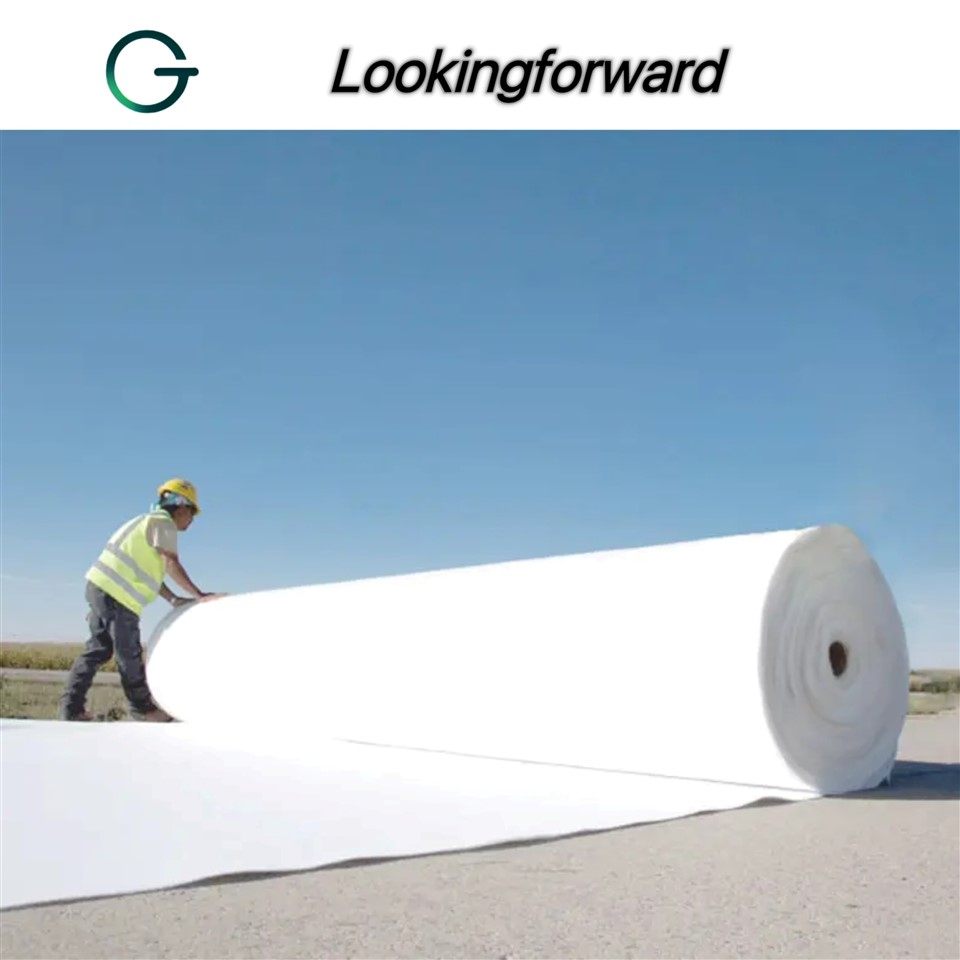

Non Woven Filter Fabric
Description
What is filament non woven geotextile?
Geotextiles are weaving, non-woven or weaving methods that make fibers or yarns into continuous flat materials. Non woven filter fabrics are widely used in railways, highways, water conservancy, mining and metallurgy and environmental protection and other major projects related to the national economy and people's livelihood, and have important roles such as reinforcement, filtration, drainage, protection and separation. Geotextiles can be divided into filament geotextiles and short-filament geotextiles according to the length of their fibers, which are obtained by filament spunbond and staple fiber wrapping respectively. Compared with short-fiber geotextiles, the geotextiles prepared by filament spunbond have the characteristics of uniform texture, high tensile strength and high production efficiency.
Non woven filter fabric (Filament) is a new type of building material used in civil engineering, which is laid into a network by filament fibers through different equipment and processes, and then intertwined with each other through acupuncture and moxibustion and other processes, so that different fibers are intertwined and fixed with each other, so that the fabric is standardized, and the fabric is soft, plump, thick and tough, so as to achieve different thicknesses and meet the requirements of use.
PP filament non woven geotextile have high chemical stability, strength and density, which makes them occupy an important position in water conservancy engineering, geotechnical engineering and geological environment engineering. PET filament non woven geotextile has good mechanical properties, freeze-thaw resistance, and photo-oxidation aging resistance.
| Basic Info.--Filament non woven geotextile | |||
| Model NO. | Geotextile Manufacturer | Usage | lnsulation, Water Filter |
| Feature | Corrosion Resistant, Filtration, Drainage, Reinforcement | Kind | Woven |
| Width | 2m-6m or Customrized | Length | 100m or Customized |
| Packing | Woven Plastic Bag | Standard | ASTM GM13 |
| Delivery Time | Within 15day | Geotextile | Woven Geotextile,NonwovenGeotextile |
| Transport Package | Woven Bag | Origin | Shandong, China |
| Trademark | Looking-forward | Production Capacity | 20000sqm/Day |
| HS Code | 5602100000 | Package Size | 5000.00cm * 40.00cm * 40.00cm |
| Certification | ISO9001 | Package Gross Weight | 118.000kg |
What are the basic properties of non woven filter fabric ?
1. It has the advantages of good tensile resistance, tear resistance, top burst resistance, puncture resistance and other mechanical strength.
2. It has good longitudinal and transverse drainage performance and good extension performance.
3. High chemical functions such as biological resistance, acid and alkali resistance, and aging resistance.
4. It has a wide pore size range, tortuous pore distribution, good permeability and filtration performance.

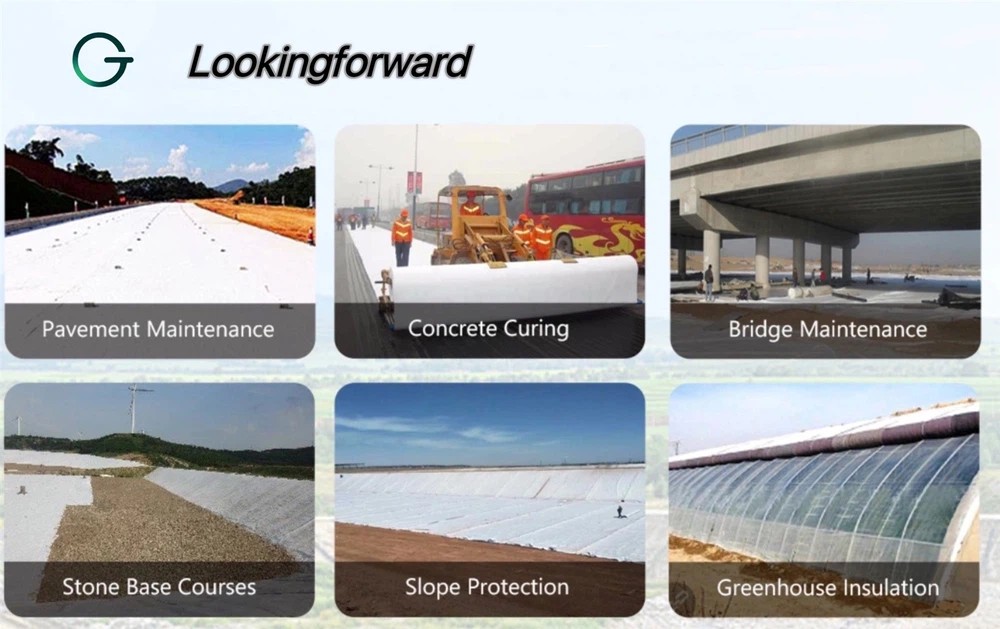

What is filament non woven geotextile used for?
1) Reinforcement in the backfill of retaining walls, or panels for anchoring retaining walls.
2) Strengthen the flexible pavement, repair the cracks on the road, and prevent the pavement from reflecting cracks
3) Increase the stability of gravel slope and reinforced soil to prevent water loss and soil freezing damage at low temperature.
4) The filter layer of water wells, pressure reducing wells or bias pipes in water conservancy projects.
5) The isolation layer of the masonry fabric between the road, airport, railway slag and artificial rockfill and the foundation.
6) Drainage behind the impermeable geomembrane or the lower part of the concrete retaining surface in the earth dam or earth embankment.
Technical Data Sheet
| PP filament non woven geotextile | |||||||||||
| Specification | Values | ||||||||||
| Weight (g/m2) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
| Weight variation (%) | ±4% | ||||||||||
| Thickness (mm) | 1.2 | 1.6 | 1.8 | 2.1 | 2.6 | 3 | 3.3 | 3.7 | 4 | 4.5 | 6 |
| Width (m) | 1 to 6.5m (5.9m for container transportation) | ||||||||||
| Width deviation (%) | ±0.5% | ||||||||||
| Breaking Strength (≥KN) | 6 | 11 | 15 | 19 | 22 | 25 | 28 | 31 | 34 | 40 | 50 |
| Elongation at Break (%) | 50% to 90% | ||||||||||
| CBR Bursting Strength (≥KN/m) | 1 | 1.7 | 2.5 | 3 | 3.5 | 3.9 | 4.3 | 4.8 | 5.3 | 6.2 | 7.8 |
| Sieve Size (mm) | 0.07 to 0.3 | ||||||||||
| Vertical Permeability Coefficient (cm/s) | 1.0*(10-0 to 10-2) | ||||||||||
| Tear Strength (≥KN) | 0.21 | 0.31 | 0.4 | 0.5 | 0.58 | 0.67 | 0.75 | 0.8 | 0.85 | 1 | 1.3 |
| PET filament non woven geotextile ( GB/T17639-2008) | ||||||||||
| Item | Index | |||||||||
| Index breaking strength(KN/m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
| 1 | Vertical and horizontal rupture strength / (KN/ m) | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
| 2 | Vertical and horizontal standard strength corresponding to elongation % | 40-80 | ||||||||
| 3 | CBR bursting strength /KN | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 |
| 4 | Vertical and horizontal tearing strength /KN | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.7 | 0.82 | 1.1 | 1.25 |
| 5 | Equivalent aperture O90(95)>/mm | 0.05-0.20 | ||||||||
| 6 | Vertical permeability coefficient | K x(10-1-10-3) and K=1.0-9.9 | ||||||||
| 7 | Thickness / mm≥ | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
| 8 | Width deviation | -0.5 | ||||||||
| 9 | Unit area mass deviation | -5 | ||||||||
Differences Between Filament and Short-Fiber Non Woven Geotextiles
Filament geotextiles and short-fiber geotextiles differ significantly in manufacturing processes, performance characteristics, and applications. Here are the main differences between these two types of geotextiles:
1. Manufacturing Processes
Filament Geotextiles:
Material: Filament geotextiles are made from continuous long fibers through processes such as needle punching, heat bonding, or other methods.
Manufacturing Process: The production process typically includes spinning, needle punching, and heat bonding. These long fibers remain continuous throughout the production process, resulting in higher strength and durability.
Short-Fiber Geotextiles:
Material: Short-fiber geotextiles are made from short fibers through processes such as needle punching or other methods.
Manufacturing Process: The production process is relatively simple, involving the random distribution and needle punching of short fibers to form the geotextile. Due to the shorter fibers, the material's strength and durability are relatively lower, but the manufacturing cost is lower.
2. Performance Characteristics
Filament Geotextiles:
Strength: Filament geotextiles have high tensile strength and tear resistance, making them suitable for applications requiring high strength.
Durability: The continuous fiber structure provides higher durability and longevity in long-term use.
Permeability: Generally, filament geotextiles have good permeability, allowing for effective filtration and drainage.
Short-Fiber Geotextiles:
Strength: Short-fiber geotextiles have lower tensile strength and tear resistance, suitable for general geotechnical applications.
Durability: Although less durable than filament geotextiles, short-fiber geotextiles still perform well in various engineering environments.
Permeability: Short-fiber geotextiles typically have good permeability, suitable for drainage and filtration applications.
3. Applications
Filament Geotextiles:
Road and Railway Construction: Used for subgrade reinforcement and separation, providing high strength and durability.
Dams and River Engineering: Used for protection and reinforcement, offering excellent erosion resistance.
Landfills: Used for lining and protection, providing long-term durability and stability.
Bridge and Tunnel Engineering: Used for foundation reinforcement and protection.
Short-Fiber Geotextiles:
Drainage Systems: Used for drainage and filtration, offering good permeability and filtration performance.
Landscape Engineering: Used for soil stabilization and protection, suitable for general landscaping and greening projects.
Temporary Works: Used for short-term projects, such as temporary roads and construction site protection.
4. Comparative Data
| Performance Parameter | Filament Geotextiles | Short-Fiber Geotextiles |
|---|---|---|
| Tensile Strength | 20-80 kN/m | 10-40 kN/m |
| Tear Resistance | High | Medium |
| Permeability | High | High |
| Durability | High | Medium |
| Manufacturing Cost | Higher | Lower |
Filament and short-fiber geotextiles each have their advantages and are suitable for different engineering needs. Filament geotextiles, with their high strength and durability, are ideal for projects requiring high strength and long-term use. Short-fiber geotextiles, with their lower manufacturing cost and good permeability, are suitable for general engineering and short-term projects. Selecting the appropriate type of geotextile based on specific engineering requirements ensures the stability and longevity of the project.

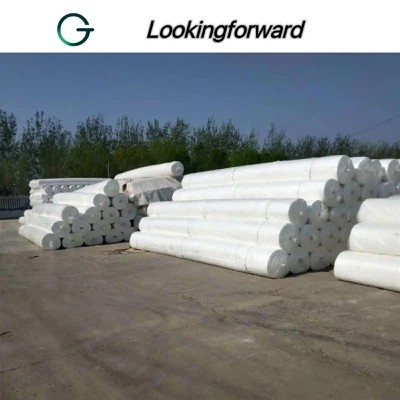

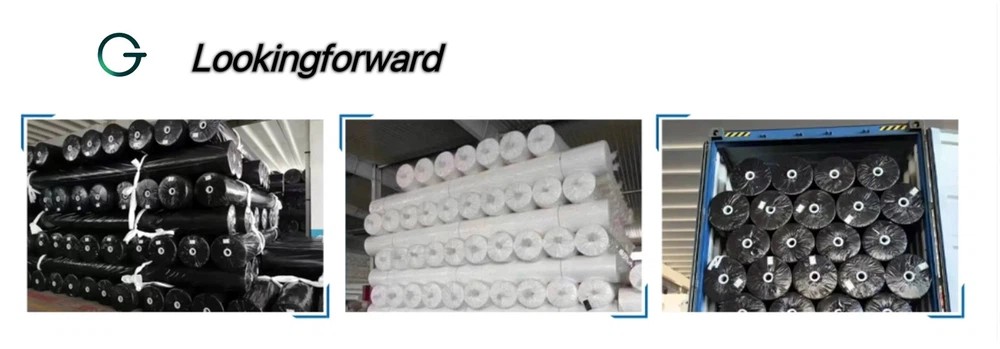

Packing & Shipping
FAQ
1.Are you a factory or trading company? Where is your company located?
We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane, geocell, geogrid etc. with lS09001 certificate more than 20 years.
2.Can you provide a sample for us?
Yes, we can send free samples, but customer need to pay the freight.
3.Can you do OEM?
Yes, we can produce the products as your request.
4.What is your payment terms?
T/T, Western Union, Paypal, L/C…
5.What is your delivery time?
Production time usually costs 2-20 days based on the order.
6.Where is your factory located? How can l visit there?
Welcome to visit our factory and it is our great pleasure. Our factory is located is Dezhou City , Shandong Province.
7.What's your MOQ? Can l order small quantity for testing at first order?
For new client, we accept small order for building mutual trust and long-term business relationship.
If you have any further questions, please do not hesitate to contact us.
