Qingdao Looking Forward New Material Technology Co., Ltd. is a Chinese company that provides geosynthetics anti-seepage solutions, products and services. Its main application areas include landfill, storage and management of solid, liquid and gas hazardous waste in mining, petrochemical, reservoirs, roads, tunnels and aquaculture. Our products include Geocells In Road Construction, Geocell Driveway, Geocell Road, Geocell Slope Protection, etc.
Why Choose Us
Quality Assurance
Regarding quality assurance, the company strictly adheres to the standards and norms of the industry quality system. It adopts industry-leading testing equipment to guarantee product quality and an excellent reputation.
Sales Market
Our products are exported to over 20 countries and regions, such as the United States, Australia, South Korea, and South Africa.
OEM/ODM
When you present your requirements, our engineers will offer you faster and more perfect customized solutions. We have a wide range of products and will provide technical support based on your actual needs to select the appropriate product for you.
Professional Service
We can accept factory inspection and cargo inspection at any time. New product research and development is carried out by professional personnel and comprehensive after-sales services are provided.
Our Company Has More Products To Offer, Please Browse The Product Categories On The Website, If You Have Any Needs, Please Contact Us

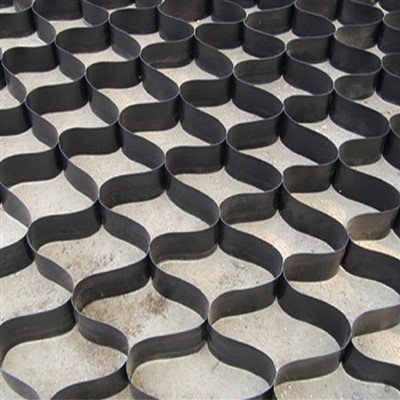

Standard Geocells:
Used for general ground stabilization and erosion control.
High-Density Geocells:
Offer enhanced strength and are used for heavy-duty applications like arenas,paddocks, roadways and parking lots.

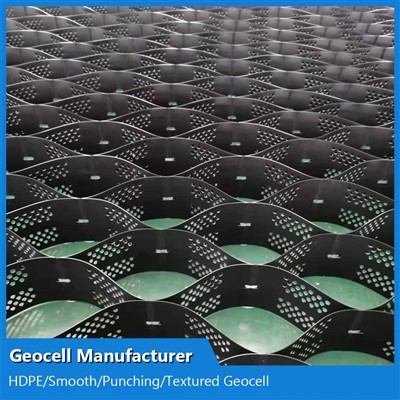

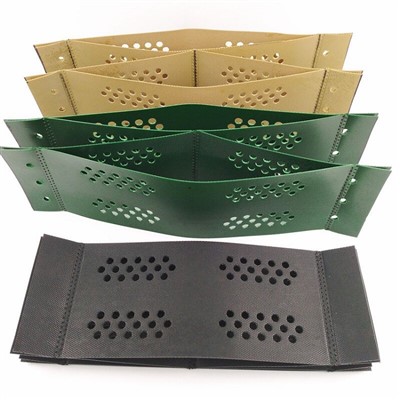

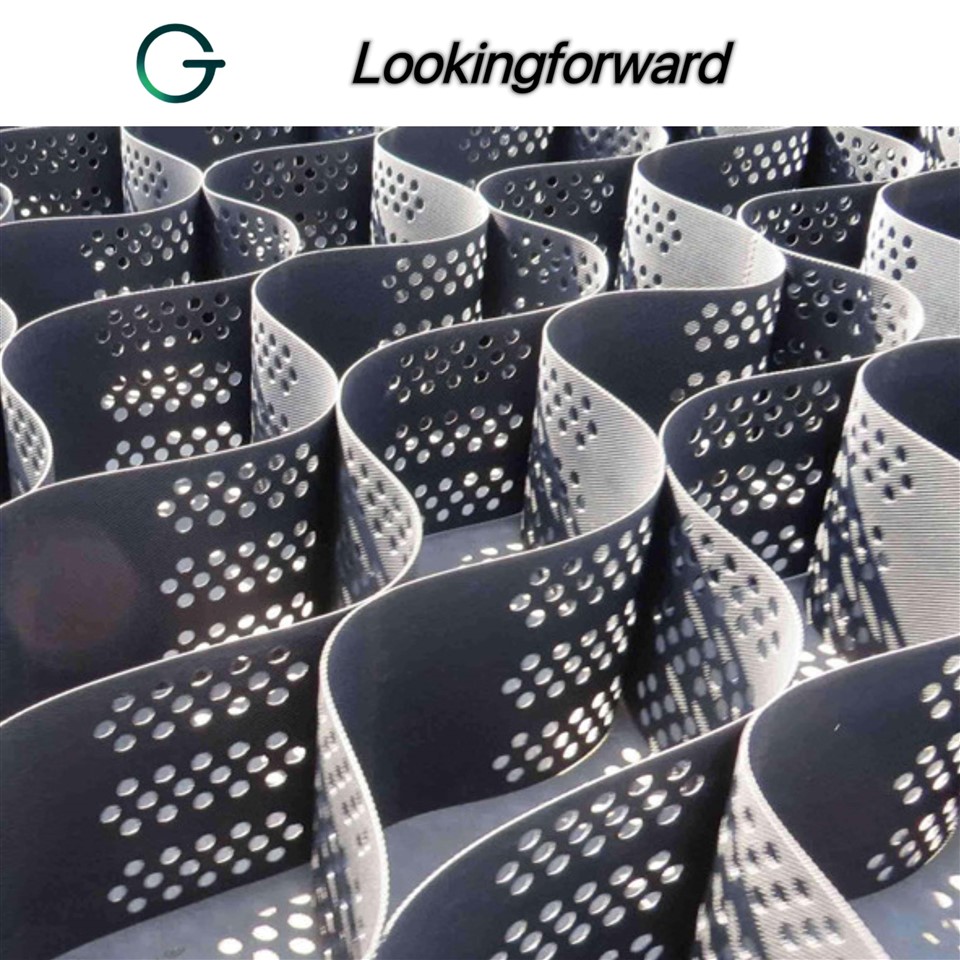

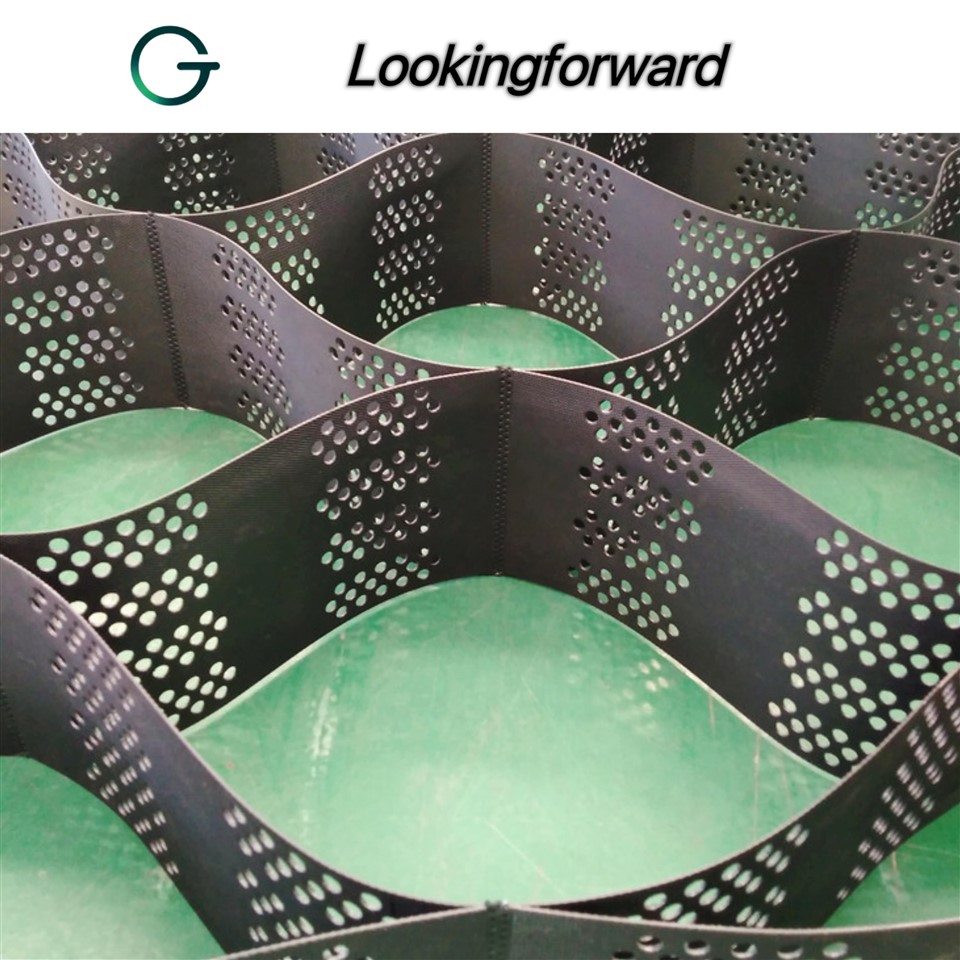

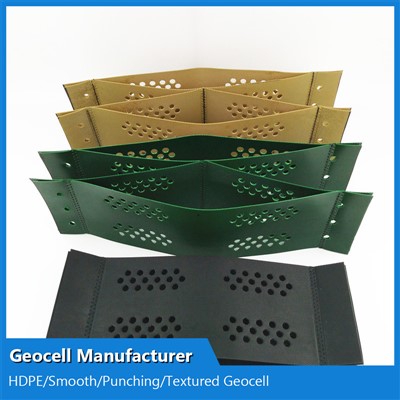

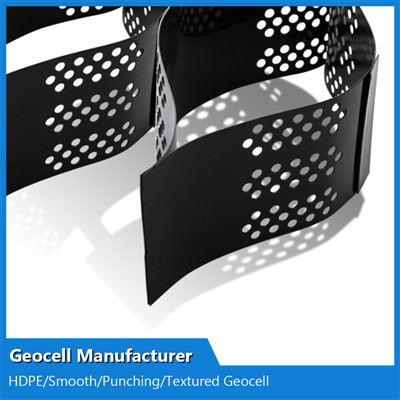

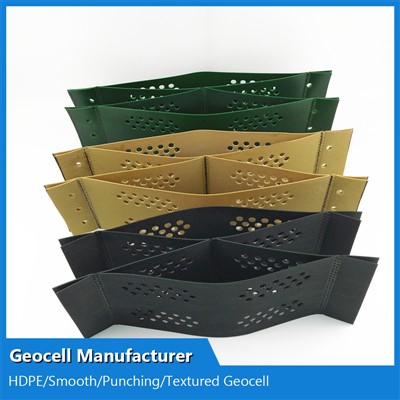

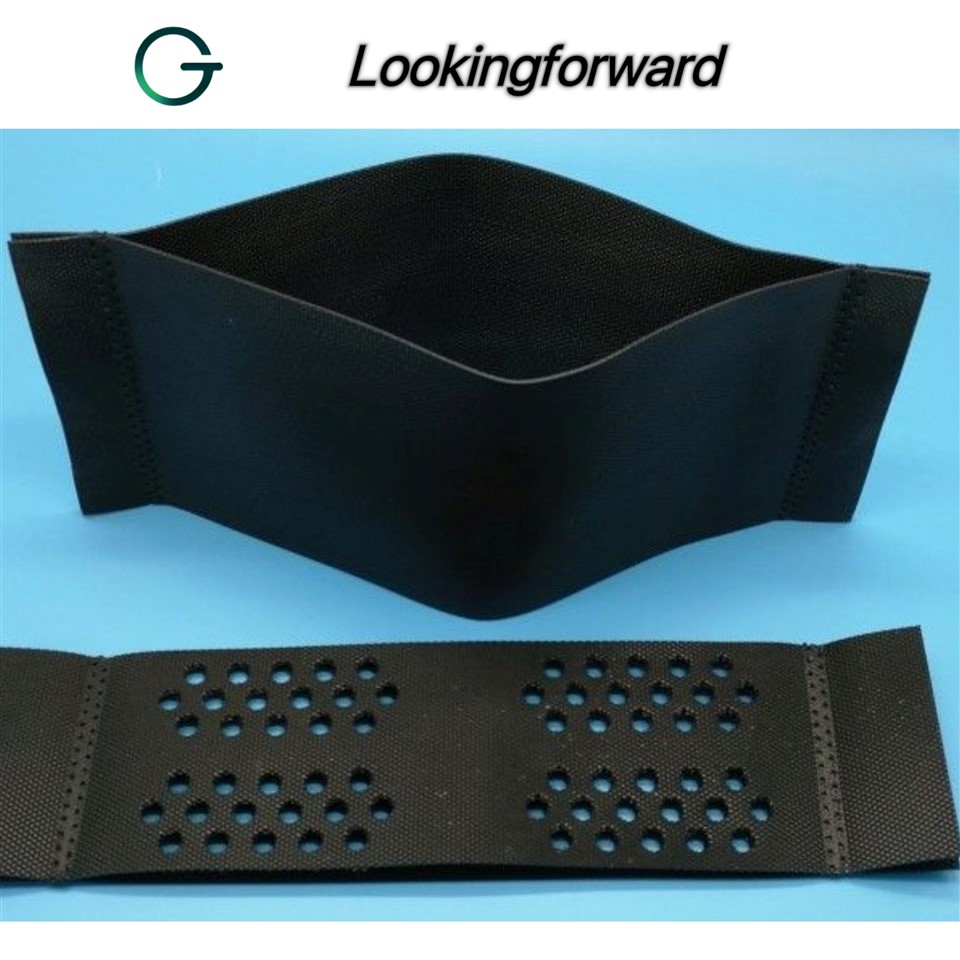

Perforated Geocells:
Allow for better water drainage and are ideal for areas prone to flooding.
● Reinforcement of the subgrade and the ground.
● Slope and retaining wall reinforcement
● Abutments for bridges.
● Stabilization of the soil and earth.
● Slope protection on a steep incline.
● Improvements to the airport runway, parking lot, and landfill.
● Improvements to the road and pavement.
● Reinforcement of the embankment and asphalt pavement
● Reinforcement of the embankment and levees.
● Protection of tree roots and riverbeds.
● Construction of a channel wall, a road, and a highway.
● Controlling erosion with a greenbelt and plants.
● Install the platform application.
Material of Geocell
High-density polyethylene (HDPE)
These are the most widely used type of geocell and are made from high-density polyethylene sheets that are welded together to form a honeycomb-like structure. HDPEs are flexible, durable, and resistant to weathering and chemical attack.
Polypropylene (PP)
PP geocells are similar to HDPE,but are made from polypropylene sheets. They are lightweight, flexible, and have good chemical resistance.
Polyester (PET)
PET geocells are made from polyester sheets and are used in applications where high-temperature stability and chemical resistance are required.
Textile
Textile geocells are made from woven or non-woven materials and are used in applications where flexibility and permeability are important. They are often used for erosion control and slope stabilization.
Geocell Specifications
|
Item |
Properties |
Units |
MD Values1 |
XMD Values1 |
|
1 |
Aperture dimensions2 |
Mm (in.) |
25 (1.0) |
33 (1.3) |
|
2 |
Minimum rib thickness2 |
Mm (in.) |
0.76 (0.03) |
0.76 (0.03) |
|
3 |
Tensile strength at 2% strain3 |
KN/m (lb/ft.) |
4.1 (280) |
6.6 (450) |
|
4 |
Tensile strength at 5% strain3 |
KN/m (lb/ft.) |
8.5 (580) |
13.4 (920) |
|
5 |
Ultimate tensile strength3 |
KN/m (lb/ft.) |
12.4 (850) |
19.0 (1,300) |
|
Structural Properties |
||||
|
6 |
Junction efficiency4 |
% |
MD Values1 |
|
|
7 |
Flexural stiffness5 |
Mg-cm |
250.000 |
|
|
8 |
Aperture stability6 |
M-N/deg |
0.32 |
|
|
Durability |
||||
|
9 |
Resistance to installation damage7 |
%SC/%SW/%GP |
95/93/90 |
|
|
10 |
Resistance to long term degradation8 |
% |
100 |
|
|
11 |
Resistance to UV degradation9 |
% |
100 |
|
|
Dimensions |
||||
|
12 |
Roll sizes |
M (ft.) |
3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246) |
|
Geocell Size
|
CODE |
PANEL SIZE |
CELL DEPTH / DIA |
APPLICATION |
|
250/100 |
16.4' x 23' |
4" / 10" |
Pedestrian/Light Vehicle Load Support and Slope Protection |
|
250/150 |
16.4' x 23' |
6" / 10" |
Light Vehicle Load Support and Slope Protection |
|
350/100 |
16.4' x 23' |
4" / 13" |
Slope Protection |
|
350/150 |
16.4' x 23' |
6" / 13" |
Slope Protection |
|
220/200 |
20'x10' |
8" / 8" |
Heavy Vehicles Load Support |
Geocell Installation
Base Preparation
The first step when installing geocell grids is to prepare the base by clearing and excavating the area. The amount of excavation you'll need will depend on the project. The deeper the excavation, the more stability your base will have.
Deploy Geocell
Once your base is complete, you're ready to add geocell grids to your project. To add geocell, first trim the material to fit the area properly. Next, lay the geogrids across the excavated area and secure them with stakes. To separate geocell from other ground layers, geotextile fabric can be used.
Infill Material
Infil material should be added to the cells. This is what creates ground stability and erosion control. The cells will prevent the materials from shifting or sinking.
The type of fill material will determine what type of base you create. Usually, angular stones or other crushed stones are used for horse arenas.
Compact the Fill Material
Once the fill material has been added, you'll want to compact it. A drag or a roller can be used to properly compact the material.
Company Honor
FAQ
We're well-known as one of the leading geocell manufacturers and suppliers in China. If you're going to buy high quality geocell at competitive price, welcome to get more information from our factory.
