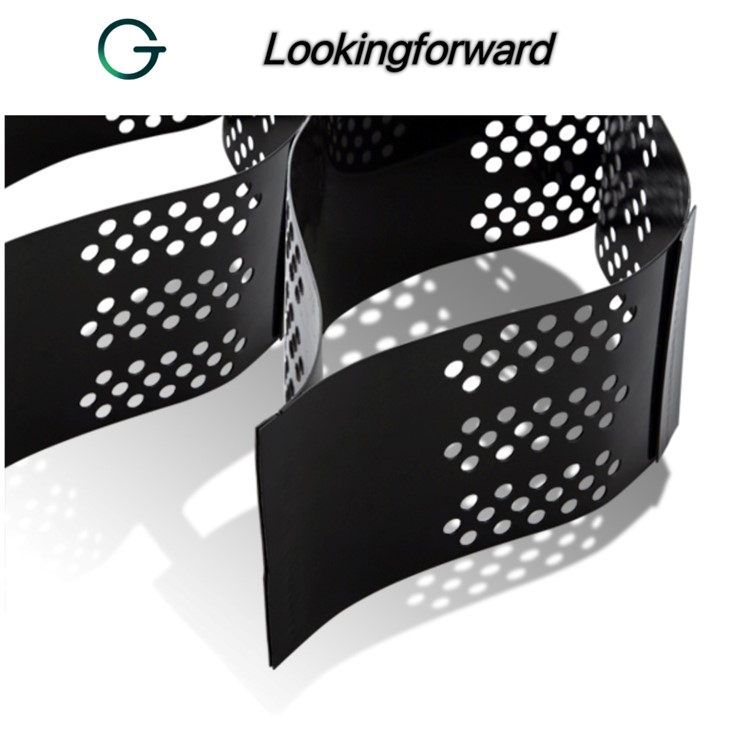

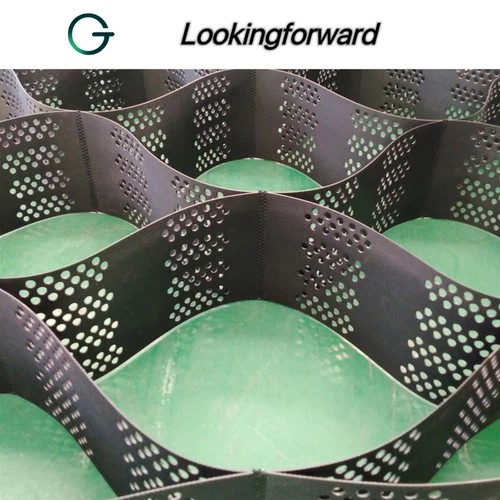

What is Geocell?

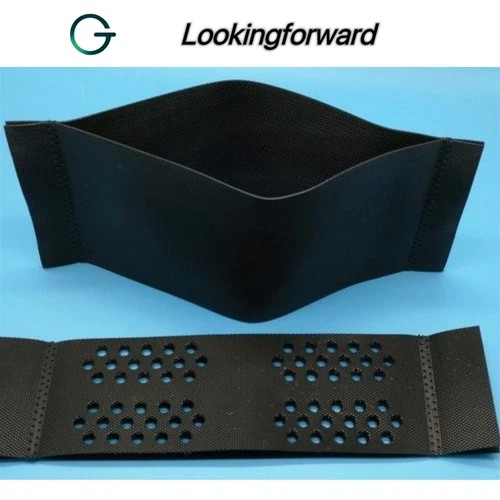

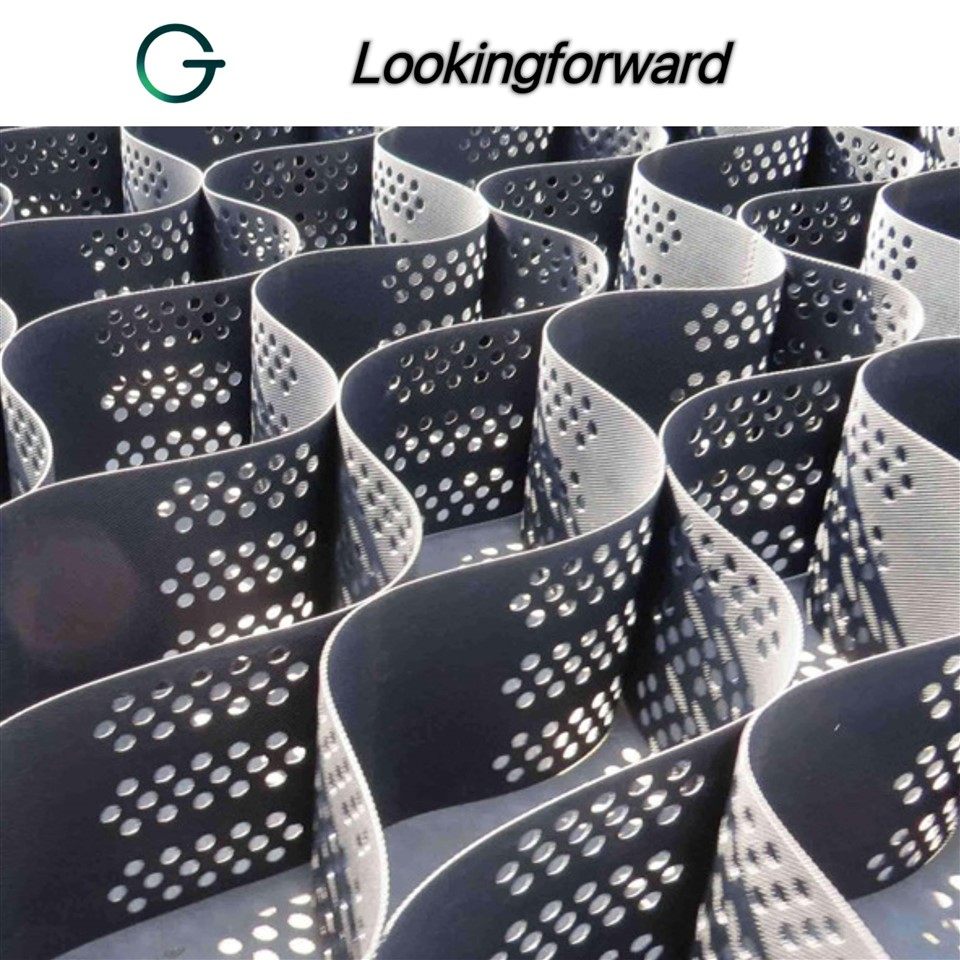

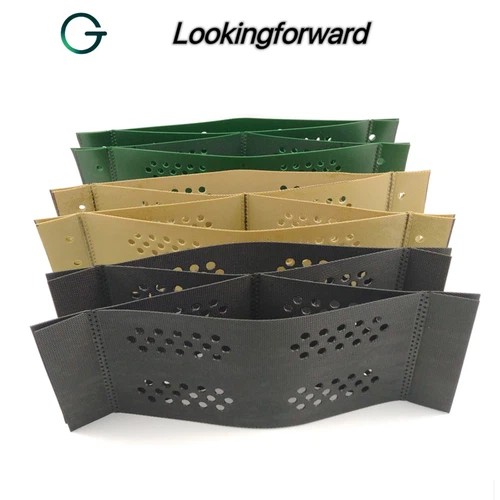

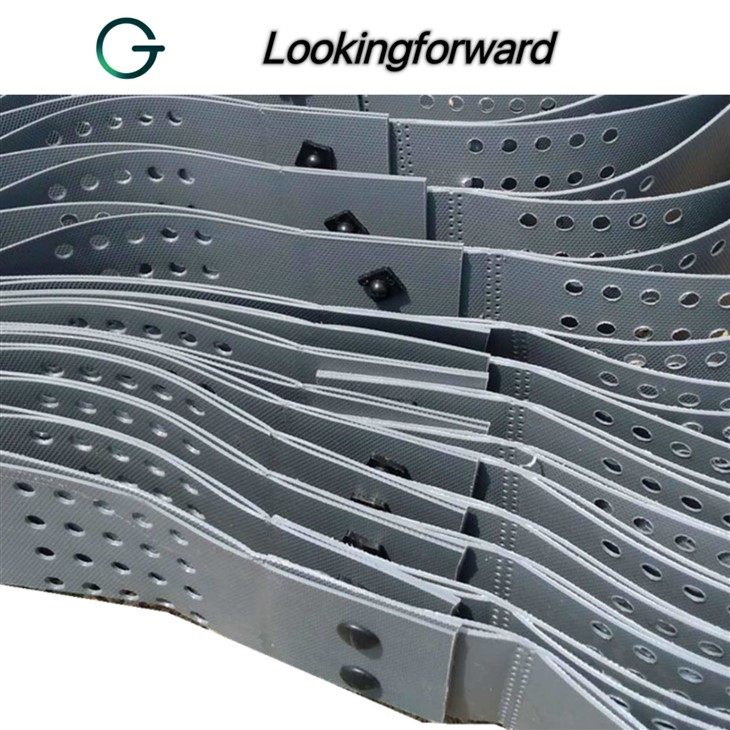

Geocell driveway is a geotechnical material that is widely used in large-scale projects. It is made up of high-density polyethylene or polypropylene raw materials to form individual modules, which are usually square or hexagonal in shape. When geocells are in use, these modules are connected to form a honeycomb-like structure.

Geocell is flexible and can be retracted and stacked when transported, and opened and filled with earth or concrete when used, forming a structure with strong lateral constraints and high stiffness. It can be used as a cushion to deal with weak foundations to increase the bearing capacity of the foundation, and can also be laid on the slope to form a slope protection structure, and can also be used to build a retaining structure.

Geocells can be well used in flood control, anti-skid, anti-corrosion, etc. It can also be used as slope protection or foundation reinforcement material in embankments, roads, railways, tunnels, etc. The advantage of using a geocell is that it can effectively distribute and carry the load of the foundation, increase its stability, and thus extend the service life of the project and reduce maintenance costs.

In addition to this, the use of geocells also has environmental benefits. It can reduce the amount of earthwork excavation required for the project, avoid piling up too much earthwork in the abandoned place of the construction site, and effectively reduce the damage to the land.
In general, geocell is a multifunctional geotechnical material, which plays an important role in economic, environmental and social benefits.

What are the basic features of geocell(also named geoweb)?

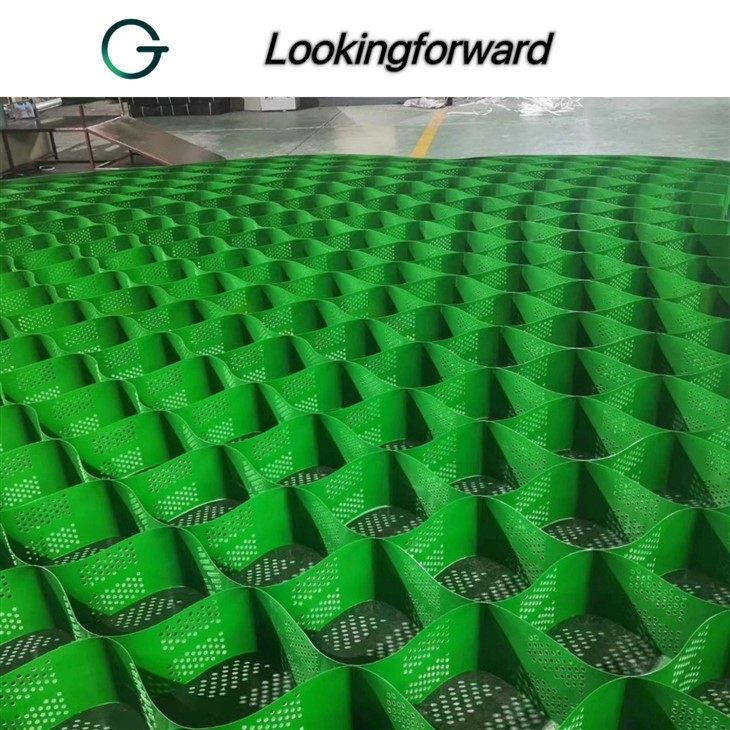

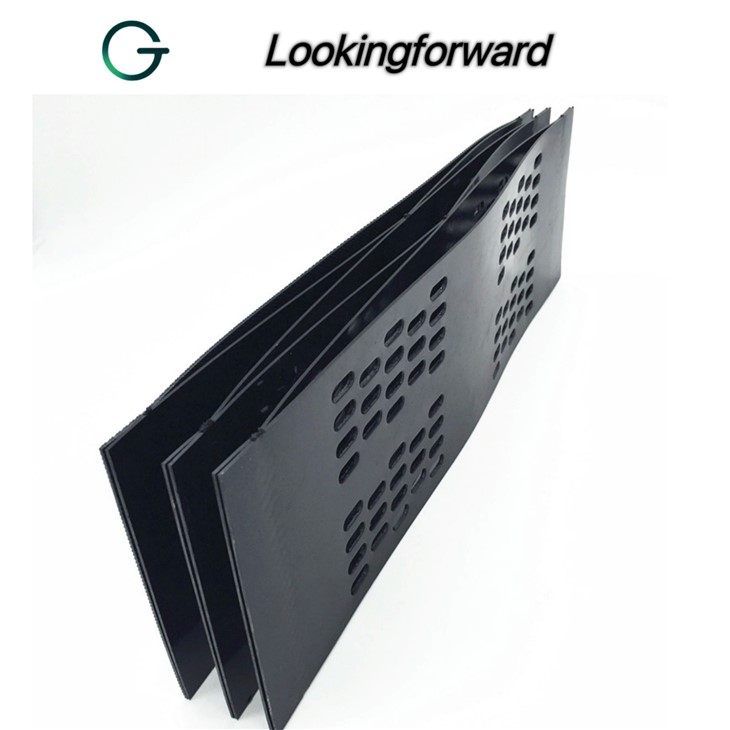

1. Geocell driveway has free expansion and contraction, can be retracted and stacked for transportation, can be stretched into a network during construction, and filled with loose materials such as soil, gravel, concrete, etc., to form a structure with strong lateral limitation and large rigidity.

2. The material is light, wear-resistant, chemically stable, photo-oxidative aging, acid and alkali resistant, and suitable for different soil and desert conditions.
3. Driveway geocell has higher lateral restriction and anti-skid, anti-deformation, effectively enhance the bearing capacity and dispersed load of the roadbed.
4. Geoweb can change the geometric dimensions such as geocell height and welding distance to meet different engineering needs.
5. The connection is convenient, and the construction speed is fast.

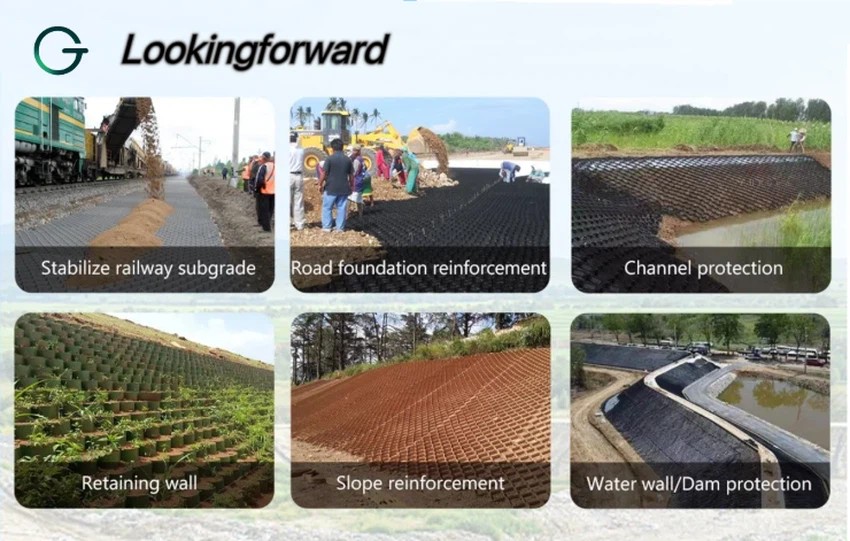

What is geocell used for?

1. Deal with half-filled and half-dug roadbed.
When building the embankment on the slope with a natural slope steeper than 1:5 on the ground, the embankment base should dig steps, and the width of the steps shall not be less than 1M, when the highway is widened in stages, the junction of the new and old subgrade fill slopes should be excavated, and the width of the high-grade highway steps is generally 2M, and the geocell is laid on the horizontal surface of each layer of steps, and the facade side limit reinforcement effect of the geocell itself is used to better solve the problem of uneven settlement.

2. Roadbed in wind-blown sand area.
The roadbed in the wind-sand area should be dominated by low embankment, and the filling height is generally not less than 0.3M. Due to the low roadbed and heavy bearing professional requirements of the roadbed construction in the wind-sand area, the use of geocell can play a limiting role in the loose filler, and the roadbed has high stiffness and strength in a limited height to withstand the load stress of large vehicles.

3. The subgrade of the platform is filled with soil and reinforced.
The use of geocell can better realize the purpose of platform back reinforcement, and sufficient friction can be generated between the geocell and the filler, which can effectively reduce the uneven settlement between the roadbed and the structure, and finally effectively alleviate the early impact damage of the bridge deck caused by the disease of "abutment jumping".

4. Subgrade in permafrost area.
The minimum fill height should be reached when the fill subgrade is built in the permafrost area to prevent the occurrence of slurry turning or causing the upper limit of the frozen layer to drop, resulting in excessive settlement of the embankment. The unique façade reinforcement effect of the geocell and the overall limitation of effective implementation can ensure the minimum fill height in some special sections to the greatest extent and make the fill have high-quality strength and stiffness.

5. Loess collapsible roadbed treatment.
When the highway and the first-class highway pass through the collapsible loess and the loess section with good compressibility, or when the allowable bearing capacity of the foundation of the high embankment is lower than the pressure of the vehicle co-load and the self-weight of the embankment, the subgrade should also be treated according to the bearing capacity requirements, and the superiority of the geocell is undoubtedly manifested.

6. Saline soil, expansive soil.
The use of saline soil, expansive soil to build the highway, a highway, shoulder and slope are reinforced measures, the façade reinforcement effect of the lattice is the most excellent of all the reinforcement materials, and it has excellent corrosion resistance, can fully meet the requirements of building high highways in saline soil and expansive soil.

Technical Data Sheet

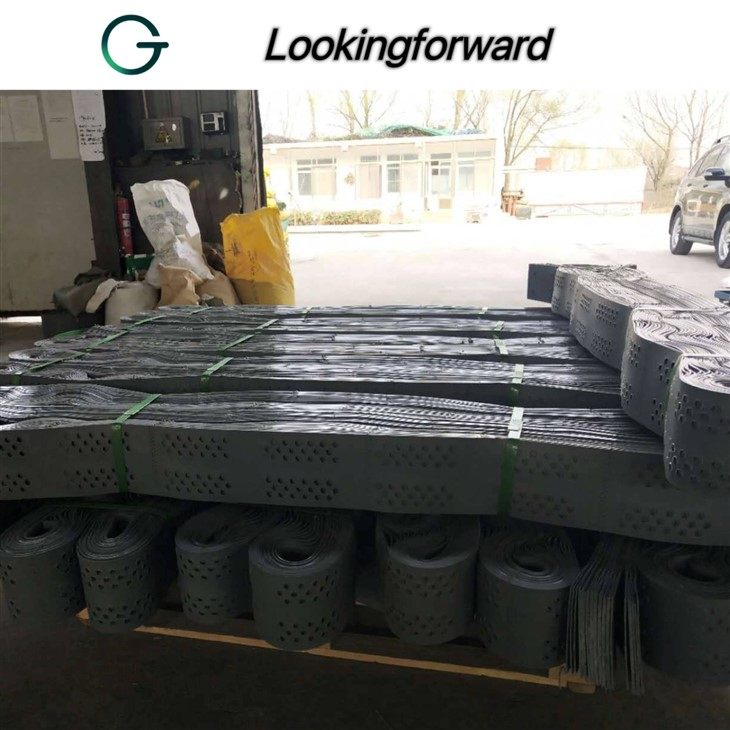

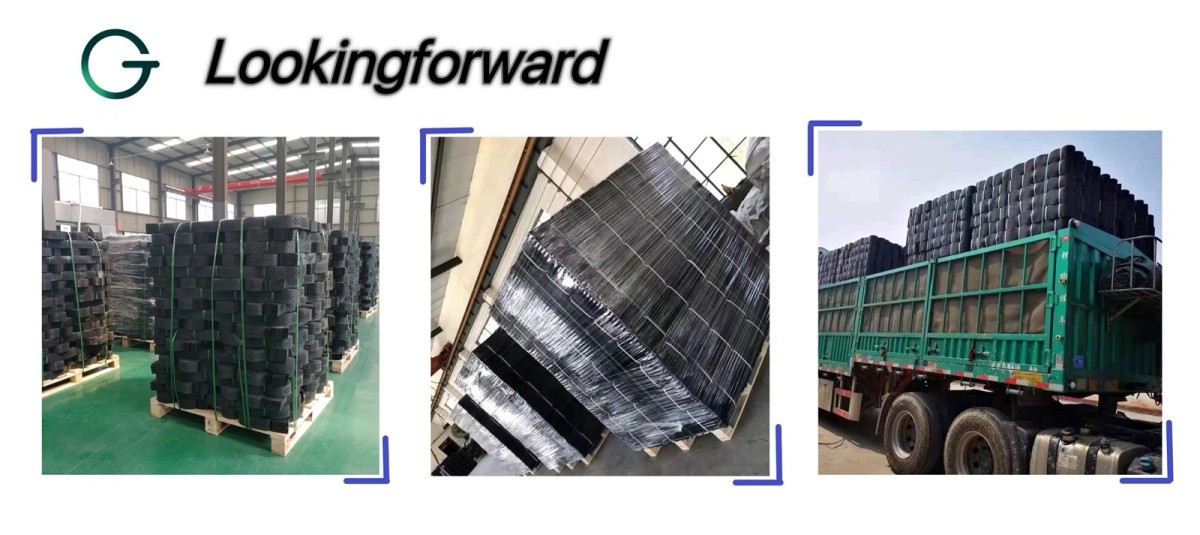

Packing & Shipping

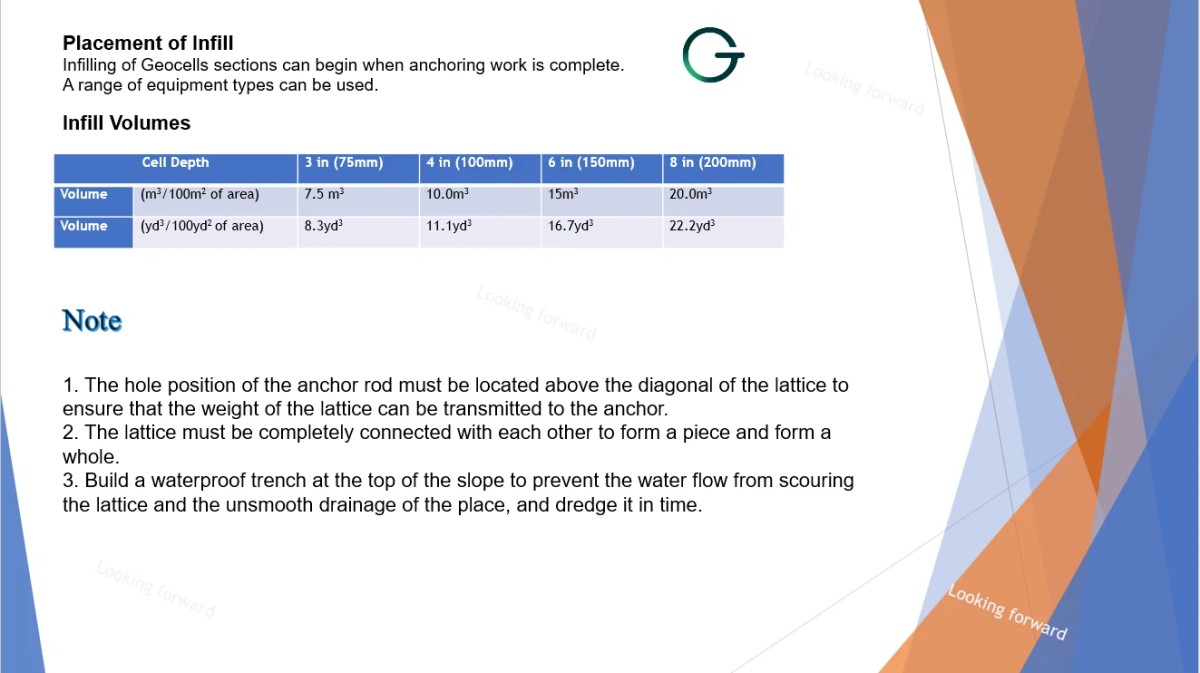

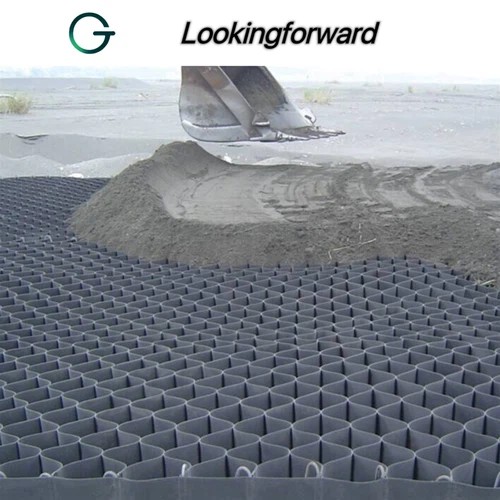

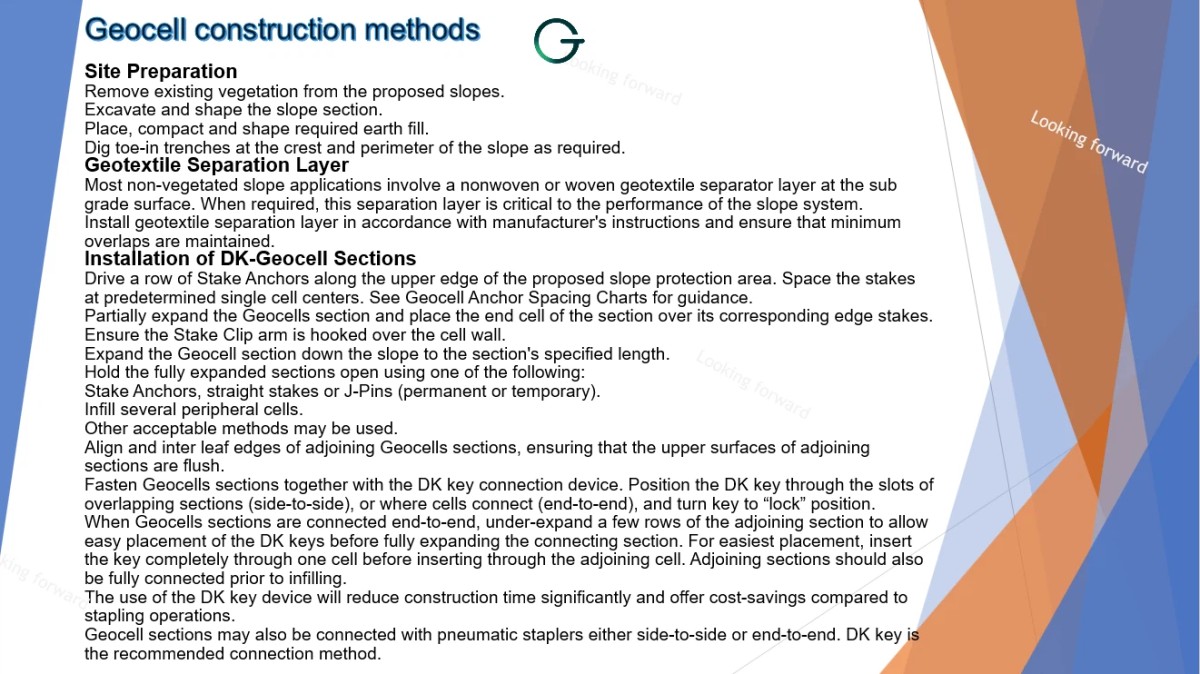

Geocell Construction Methods and Note

FAQ

1.Are you a factory or trading company? Where is your company located?

We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane, geocell, geogrid etc. with lS09001 certificate more than 20 years.

2.Can you provide a sample for us?

Yes, we can send free samples, but customer need to pay the freight.

3.Can you do OEM?

Yes, we can produce the products as your request.

4.What is your payment terms?

T/T, Western Union, Paypal, L/C…

5.What is your delivery time?

Production time usually costs 2-20 days based on the order.

6.Where is your factory located? How can l visit there?

Welcome to visit our factory and it is our great pleasure. Our factory is located is Dezhou City , Shandong Province.

7.What's your MOQ? Can l order small quantity for testing at first order?

For new client, we accept small order for building mutual trust and long-term business relationship.

If you have any further questions, please do not hesitate to contact us.
