PVC (Polyvinyl Chloride) pipes are a crucial component in various industries due to their durability, chemical resistance, and versatility. The production of these pipes requires a specialized production line that ensures high-quality output and efficient manufacturing processes.

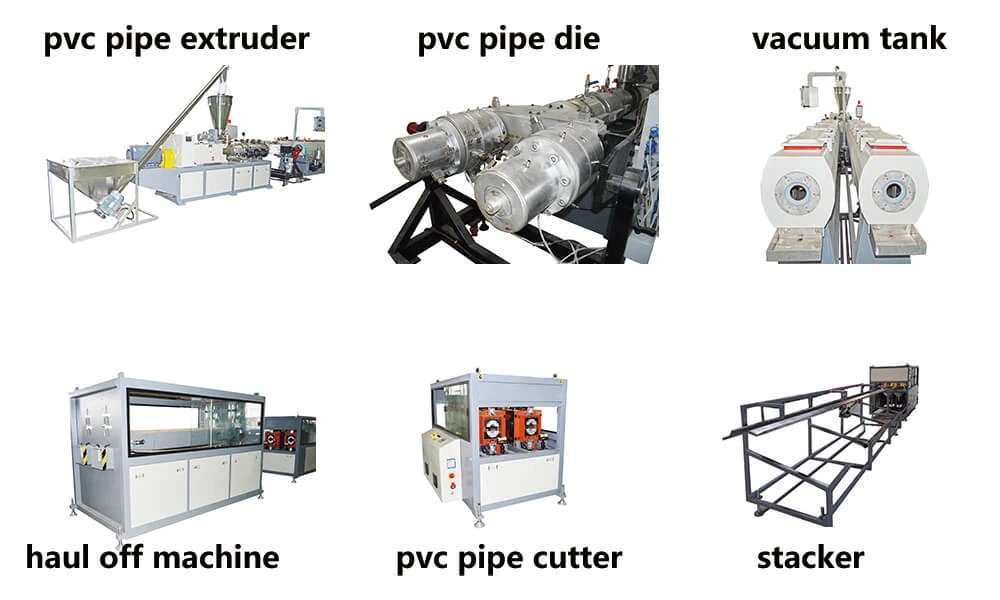

Components of the PVC Pipe Production Line

1,Raw Material Mixer

Function: Mixing PVC resin with additives like stabilizers, plasticizers, and lubricants to prepare the compound for extrusion.

Specifications: Capacity ranges from 100 kg/h to 500 kg/h, with precise control over temperature and mixing speed.

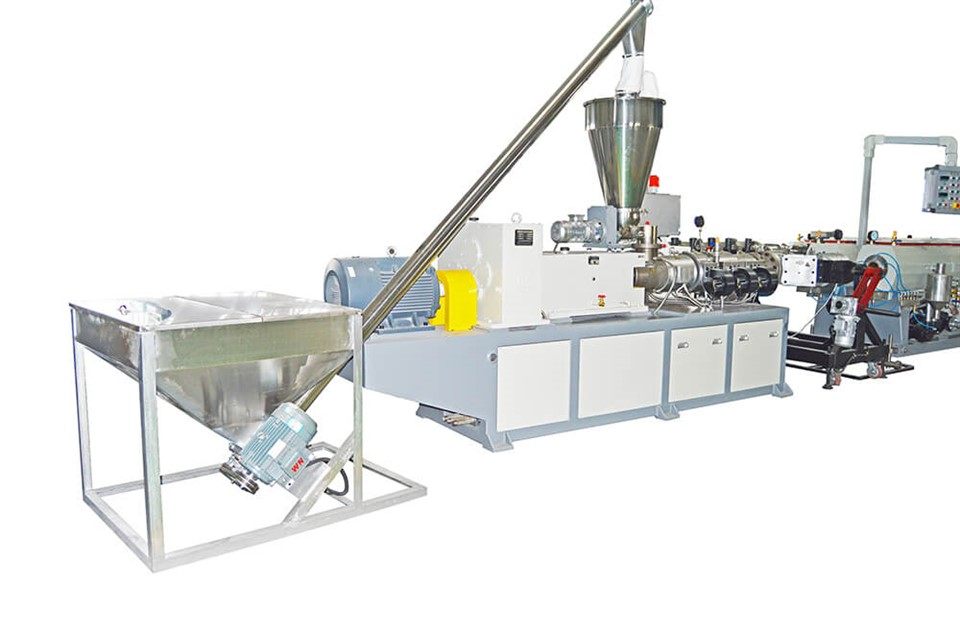

2.Conical Twin-Screw Extruder

Function: Melting and homogenizing the PVC compound, then extruding it through a die to form the pipe.

Specifications: Screw diameter typically between 65 mm and 92 mm, output capacity from 150 kg/h to 450 kg/h, equipped with advanced temperature control systems.

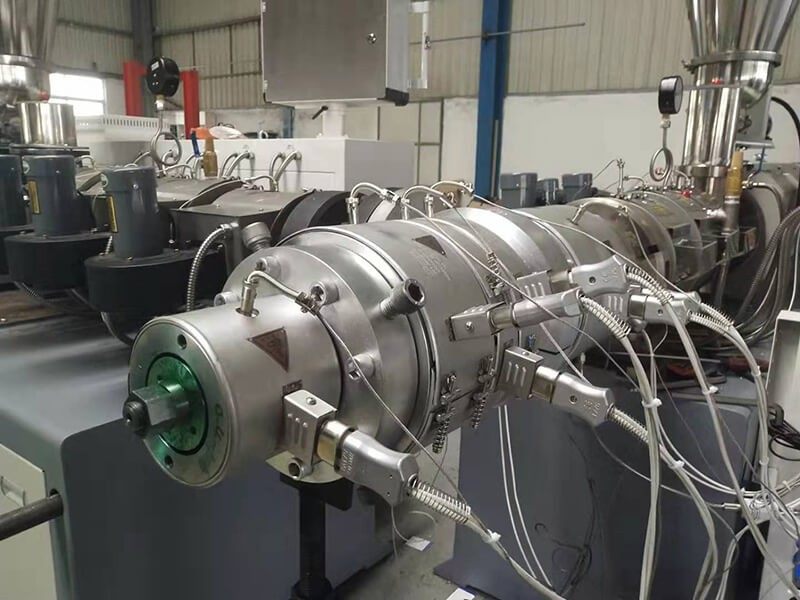

3.Extrusion Die

Function: Shaping the molten PVC compound into a pipe with a specific diameter and thickness.

Specifications: Customizable for different pipe sizes, designed for uniform flow and minimal stress on the material.

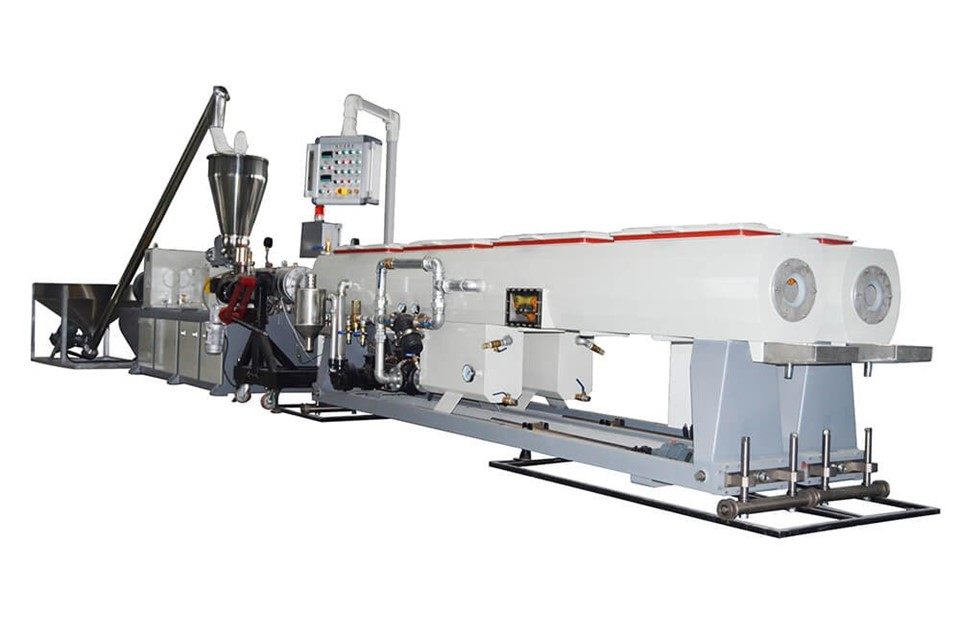

4.Vacuum Calibration Tank

Function: Cooling and calibrating the extruded pipe to the desired dimensions using vacuum and water.

Specifications: Lengths range from 6 m to 9 m, with multiple vacuum chambers for precise calibration.

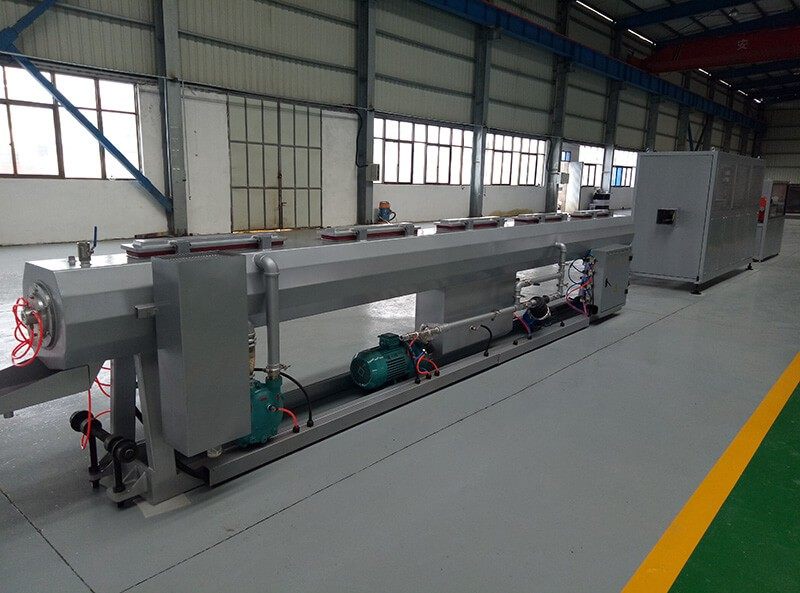

5.Cooling Tanks

Function: Further cooling the pipe to stabilize its shape and properties.

Specifications: Typically 6 m to 12 m in length, with water temperature control systems.

6.Haul-Off Machine

Function: Pulling the pipe through the production line at a consistent speed.

Specifications: Equipped with caterpillar belts or rollers, speed adjustable from 0.5 m/min to 10 m/min, ensuring smooth and steady transportation.

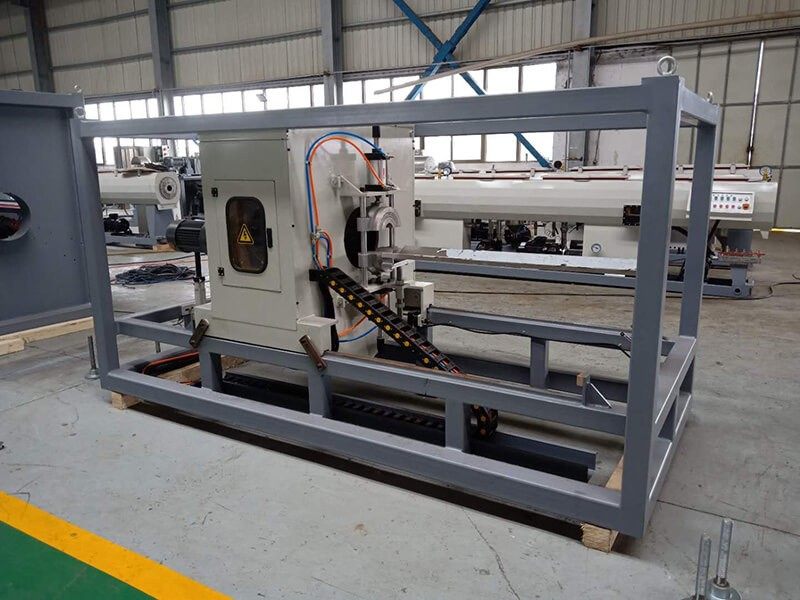

7.Cutting Machine

Function: Cutting the pipes to the required lengths.

Specifications: Uses planetary or saw cutting, with length precision of ±0.5 mm.

8.Stacking Unit

Function: Automatically stacking the cut pipes for easy handling and packaging.

Specifications: Adjustable for different pipe lengths and diameters.

Technical Specifications and Capabilities

Pipe Diameter Range: Typically from 16 mm to 630 mm.

Wall Thickness: Adjustable according to industry standards and specific requirements.

Production Speed: Up to 20 m/min depending on pipe size and extruder capacity.

Control System: PLC (Programmable Logic Controller) with touch screen interface for easy operation and monitoring.

Energy Efficiency: Equipped with energy-saving systems to reduce power consumption.

Real-World Applications

1.Construction Industry

Usage: PVC pipes are extensively used for water supply, drainage, and sewage systems due to their corrosion resistance and longevity.

Case Study: A large-scale housing project in Brazil utilized over 50,000 meters of PVC pipes for its plumbing and drainage systems, ensuring reliable performance and low maintenance costs.

2.Agricultural Sector

Usage: PVC pipes are ideal for irrigation systems, ensuring efficient water distribution.

Case Study: In India, a vast irrigation project spanning 10,000 hectares incorporated PVC pipes for drip and sprinkler systems, significantly improving water use efficiency.

3.Telecommunications

Usage: PVC pipes serve as protective conduits for underground cables.

Case Study: A telecommunications company in Australia implemented PVC pipe conduits in a major network expansion, safeguarding cables against environmental damage and mechanical stress.

4.Industrial Applications

Usage: Used for chemical transportation and industrial wastewater management due to their chemical resistance.

Case Study: A chemical manufacturing plant in Germany replaced its aging metal pipelines with PVC pipes, reducing maintenance costs and enhancing safety.

Advantages of PVC Pipe Production Line

High Efficiency: The automated and synchronized components ensure a continuous and efficient production process.

Quality Control: Advanced control systems and precise calibration ensure consistent pipe quality and adherence to standards.

Versatility: Capable of producing pipes for a wide range of applications and industries.

Cost-Effective: Lower operational and maintenance costs compared to traditional materials and methods.

The PVC pipe production line is an advanced manufacturing system designed to produce high-quality PVC pipes for various applications. Its components, technical capabilities, and real-world applications demonstrate its importance in modern industry. As demand for durable and versatile piping solutions continues to grow, the PVC pipe production line remains a vital asset for manufacturers worldwide.
