Self Adhesive Epdm is our company using independent cutting-edge technology, using new technology equipment, during the production of soldering EPDM waterproofing membrane process ( SD-JH) technology in the EPDM coil extrusion, activating Ethylene-propylene rubber surface&he polymerization of isobutylene thickening material and the separation of film from the high-strength extrusion directly, welding can be the newest EPDM self-adhesive waterproof materials.
facebooktwitterlinkedingoogle+
Send Inquiry

Description

Self Adhesive Epdm is our company using independent cutting-edge technology, using new technology equipment, during the production of soldering EPDM waterproofing membrane process ( SD-JH) technology in the EPDM coil extrusion, activating Ethylene-propylene rubber surface&he polymerization of isobutylene thickening material and the separation of film from the high-strength extrusion directly, welding can be the newest EPDM self-adhesive waterproof materials. Self Adhesive Epdm is a first-class extrusion all over the world, self-adhesive layer with high strength of the pressure sensitivity and reactivity, with the cast-in-place concrete base to form a suction cup effect and inorganic reaction in concrete to form a chemical bond, To achieve with the concrete "skin type" full sticky effect. The material is environmentally friendly, non-toxic, tasteless, flexible, durable and physical properties are better than the traditional asphalt self-adhesive coil, to meet the modern high-grade Building a century of life design requirements, is the best waterproofing waterproof construction materials and also the preferred waterproof building materials at home and abroad.

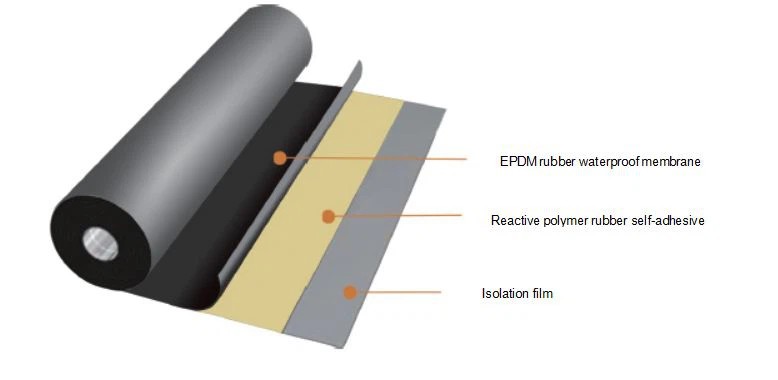

2023100714354123a03d35cd1342db987ad456149baa89



Features&advantages of Self Adhesive Epdm

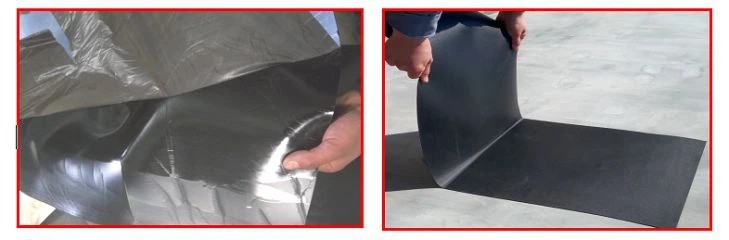

★ Super strong cohesive force, the web self-adhesive layer directly generated by polymerization, can not be stripped away, sealed waterproof not channeling water.
★ Domestic and foreign polymer self-adhesive waterproofing membrane: the first material directly on the surface of the formation of self-adhesive layer bonding technology, can be combined with the concrete bonded together to achieve a permanent waterproof effect.



20231007143620716c45ef5a8d4c83bf8183f3a4542fa9



★ Super resistance to climate aging, ozone resistance, resistance to ultraviolet light, to meet the requirements of a variety of environmental conditions.
★ High strength&elongation, strong resistance to piercing, high bending, excellent flexibility, adapting to the deformation of various building structures.

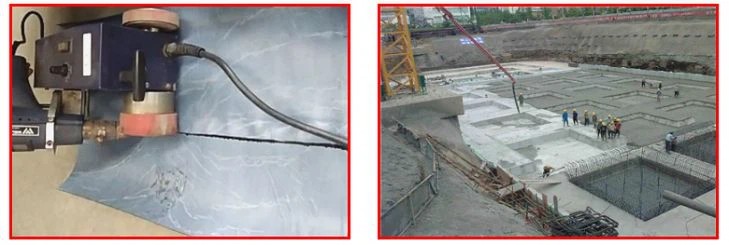

★ Wet construction, lap can be welded, change the traditional EPDM wihtout welding drawbacks.



20231007143657c2b32ee9be8d4fe8bf7375eed05fe47a



★ Excellent high resistance, low temperature, up to -40 ℃ without cracking, it is that asphalt &other coil couldn't achieved.
★ Excellent resistance to chemical corrosion, long-term resistance under a variety of natural environment, erosion of chemicals.
★ Light material carrier, non-toxic, tasteless, green, resistance to the root system, making the living ecological.
★ Cold construction, without using fire operations, construction simply, safe & environmentally friendly, convenient and fast.



physical Properties of Self Adhesive Epdm



Technical data sheets GB18173.1-2012 JL1/ZJL1

Material

No.

Item

Indication

Main waterproof layer

(JL1)

1

Breaking tensile strength,MPa ≥

7.5

2

Elongation at break,% ≥

450

3

Tear strength, kN/m ≥

25

4

Low temperature bending,

-40℃ No crack

5

Impermeable

0.3Mpa No leakage



Self-adhesive layer



(ZJL1)

1

Low temperature bending

-25℃ No crack

2

Sticky, min ≥

20

3

Peel strength/

(N/mm)

Sheet and sheet ≥

0.8

4

Sheet and aluminum plate ≥

1.0

5

Sheet and cement board ≥

1.0

6

After hot air aging

(80℃×168h)

Sheet and sheet ≥

1.0

7

Sheet and aluminum plate ≥

1.2

8

Sheet and cement board ≥

1.2

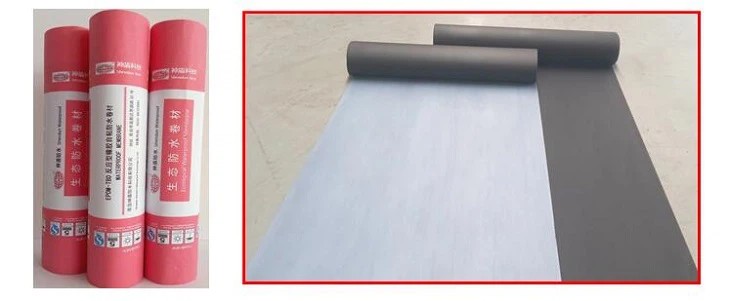

Speification of Self Adhesive Epdm



Items

unit

Type

Thickness

mm

1.2/1.5/2.0

Width

mm

1000-1200

Length

m

20

Surface



Waterproof membrane, self-adhesive,isolation film



20231007144323eee585708eac41299a9ee1a1b74aa85f



Application of Self Adhesive Epdm

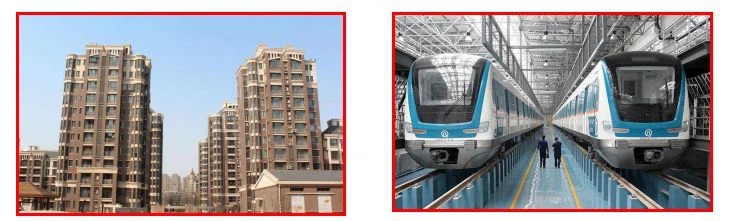

1. Used for industrial plants, commercial residential, civil underground construction, subway, tunnel, deck, grain depots and other waterproofing works.



2023100714461259e2f14e14ef41d79b1e7d087b6f253f

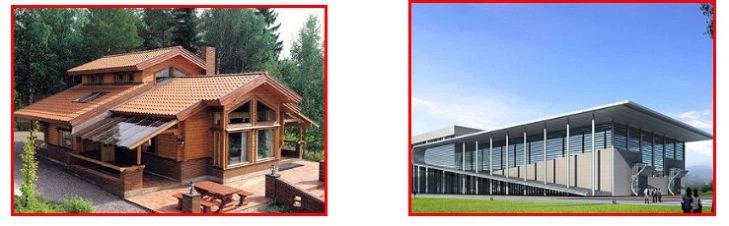

2. Also used for the wooden structure, metal structure and environmental safety requirements of the higher schools, airports, hospitals, pavilions and other waterproofing works.



20231007144640c6b55f86f4454ab9882ecfb3a73d7e41
