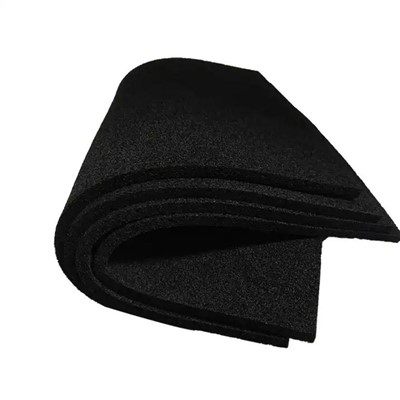

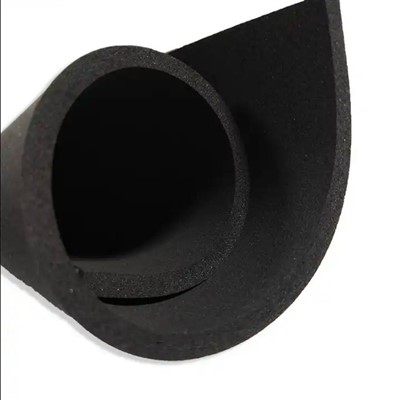

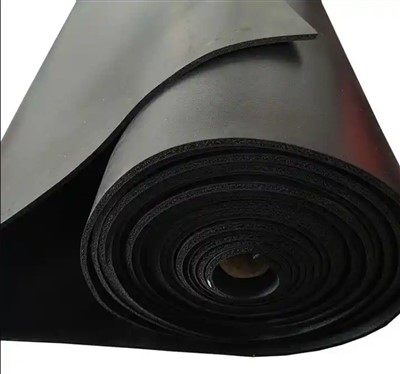

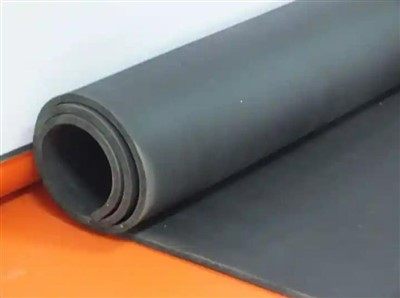

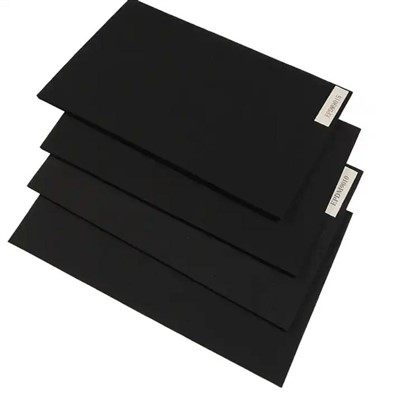

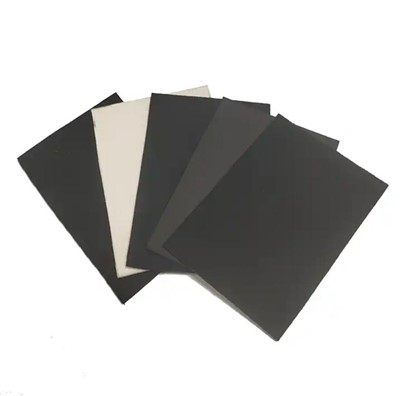

Introduction to EPDM Rubber Liner

Ethylene Propylene Diene Monomer (EPDM) rubber liner is a high-performance synthetic rubber membrane widely used in various applications due to its excellent durability, flexibility, and resistance to weathering, UV radiation, and chemicals. Its versatility makes it an ideal choice for applications ranging from waterproofing in construction to lining ponds and reservoirs in landscaping and agriculture.

Technical Specifications and Characteristics

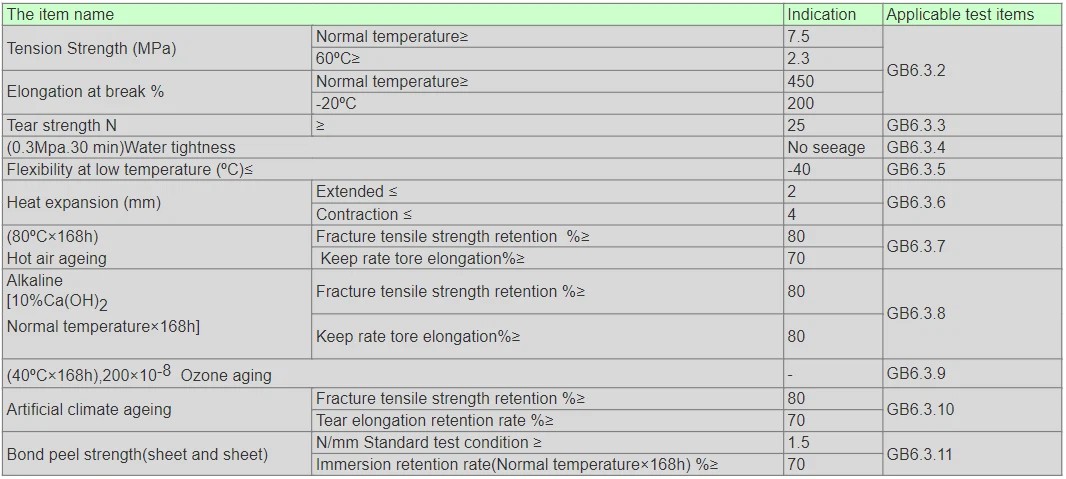

EPDM rubber liners are known for their outstanding physical properties. Here are some of the key technical specifications:

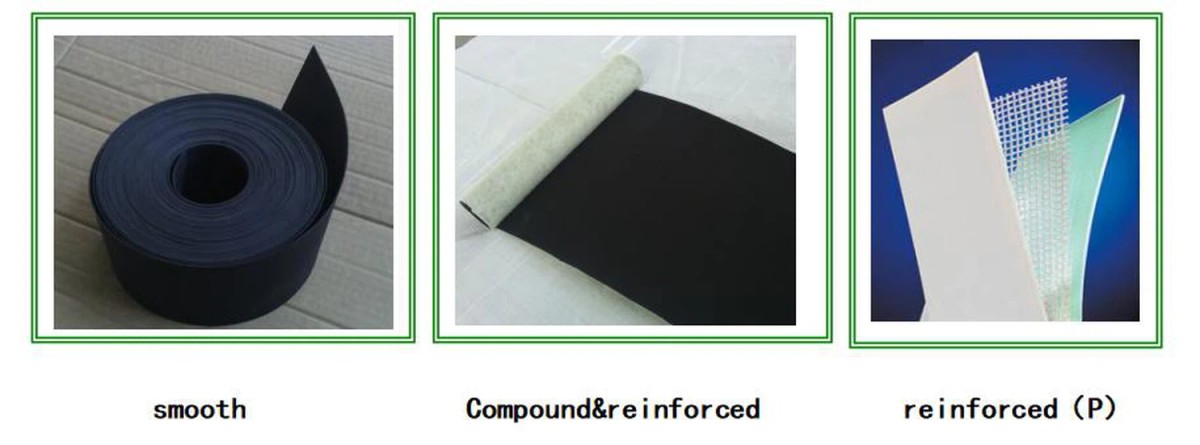

Category: Single, Double-color, Compound and Reinforced

Thickness: 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm

Width: 1-8m

Length: 10-20m-50m-100m

Material Composition: Ethylene, propylene, and a diene monomer that allows for cross-linking.

Thickness: Typically available in a range from 0.75 mm to 2.0 mm.

Tensile Strength: Around 7.5 MPa (megapascals) or higher, ensuring robustness and durability.

Elongation at Break: Greater than 300%, providing excellent flexibility.

Temperature Range: Remains flexible from -40°C to 120°C, suitable for various climatic conditions.

UV and Ozone Resistance: Exceptional, making it suitable for prolonged outdoor exposure.

Chemical Resistance: Resistant to many acids, alkalis, and polar solvents, enhancing its longevity in harsh environments.

Key Benefits of EPDM Rubber Liners

1. Durability: EPDM rubber liners are known for their long life span, often exceeding 30 years with proper installation and maintenance. This longevity results from their resistance to environmental stressors, including UV radiation, ozone, and extreme temperatures.

2. Flexibility: The high elongation at break allows EPDM liners to stretch and conform to irregular surfaces without cracking or tearing. This flexibility is particularly beneficial in applications requiring adaptation to uneven terrain.

3. Environmental Friendliness: EPDM is a sustainable material. It can be recycled and does not release harmful substances into the environment, making it a green choice for eco-conscious projects.

4. Easy Installation: EPDM liners are lightweight and easy to handle, which simplifies the installation process. They can be installed using various methods, including adhesive bonding, mechanical fastening, and ballasting.

5. Cost-Effectiveness: Despite their high performance, EPDM liners are cost-effective, offering a low life-cycle cost due to their durability and minimal maintenance requirements.

Common Applications of EPDM Rubber Liners

1. Pond and Lake Liners: EPDM is commonly used in water containment applications such as pond and lake liners. Its flexibility and UV resistance make it an ideal choice for these applications, where it can withstand varying water levels and harsh sunlight.

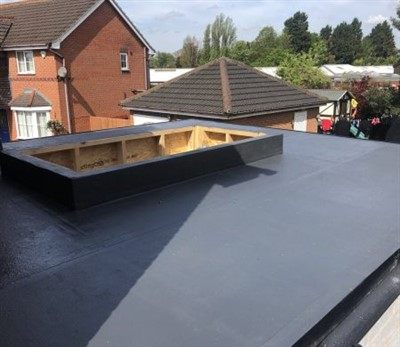

2. Roofing Membranes: EPDM is widely used in roofing applications due to its waterproofing properties. It is particularly popular in flat or low-slope commercial and residential roofs, providing a reliable barrier against water infiltration.

3. Industrial Applications: EPDM liners are used in various industrial settings, including chemical containment, wastewater treatment facilities, and processing plants. Their chemical resistance ensures they can handle aggressive substances without degrading.

4. Agricultural Uses: In agriculture, EPDM liners are employed in irrigation ponds, manure lagoons, and greenhouse waterproofing. Their durability and flexibility make them suitable for the demanding conditions in agricultural environments.

5. Landfill Liners: EPDM liners are used in landfill sites to prevent leachate from contaminating the surrounding soil and groundwater. Their resistance to a wide range of chemicals ensures effective containment of hazardous substances.

Installation and Maintenance of EPDM Rubber Liners

Installation Tips:

Surface Preparation: Ensure the substrate is smooth, clean, and free of sharp objects that could puncture the liner.

Seaming: Use adhesive or heat welding to join EPDM sheets, ensuring watertight seams.

Anchoring: Secure the liner at the edges to prevent movement due to wind or water flow.

Ballasting: In pond applications, use rocks or other heavy objects to hold the liner in place and prevent it from floating.

Maintenance Guidelines:

Regular Inspections: Conduct periodic inspections to identify and repair any damage promptly.

Cleaning: Clean the liner as needed to remove debris, algae, or other contaminants.

Repair Kits: Keep an EPDM repair kit on hand to quickly address punctures or tears.

Case Studies of EPDM Rubber Liner Applications

Case Study 1: Commercial Roof in New York City A commercial building in New York City installed an EPDM rubber roofing membrane to replace its aging roof. The project required a material that could withstand harsh weather conditions, including heavy snow and intense summer heat. The EPDM membrane provided excellent waterproofing and thermal insulation, significantly extending the roof's life and reducing energy costs.

Case Study 2: Agricultural Pond in California An agricultural operation in California needed a durable and flexible liner for an irrigation pond. EPDM rubber liner was chosen for its UV resistance and ability to conform to the pond's irregular shape. The liner has performed exceptionally well, preventing water loss and withstanding the region's high temperatures.

Case Study 3: Chemical Containment in a Manufacturing Plant A manufacturing plant in Texas required a reliable liner for its chemical containment area. EPDM's chemical resistance made it the ideal choice, ensuring the containment of hazardous substances without degradation. The liner has maintained its integrity, protecting the environment and complying with regulatory standards.

EPDM rubber liners offer a versatile, durable, and environmentally friendly solution for a wide range of applications. Their excellent physical properties, ease of installation, and long life span make them a preferred choice for both commercial and residential projects. For those seeking a reliable and cost-effective lining solution, EPDM rubber liners are an excellent investment.

At Qingdao Looking Forward, we provide high-quality EPDM rubber liners tailored to your specific needs. Our products are manufactured to the highest standards, ensuring superior performance and durability. Contact us today to learn more about our EPDM rubber liners and how they can benefit your next project.
