Introduction

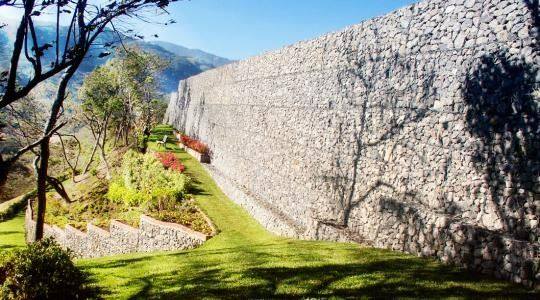

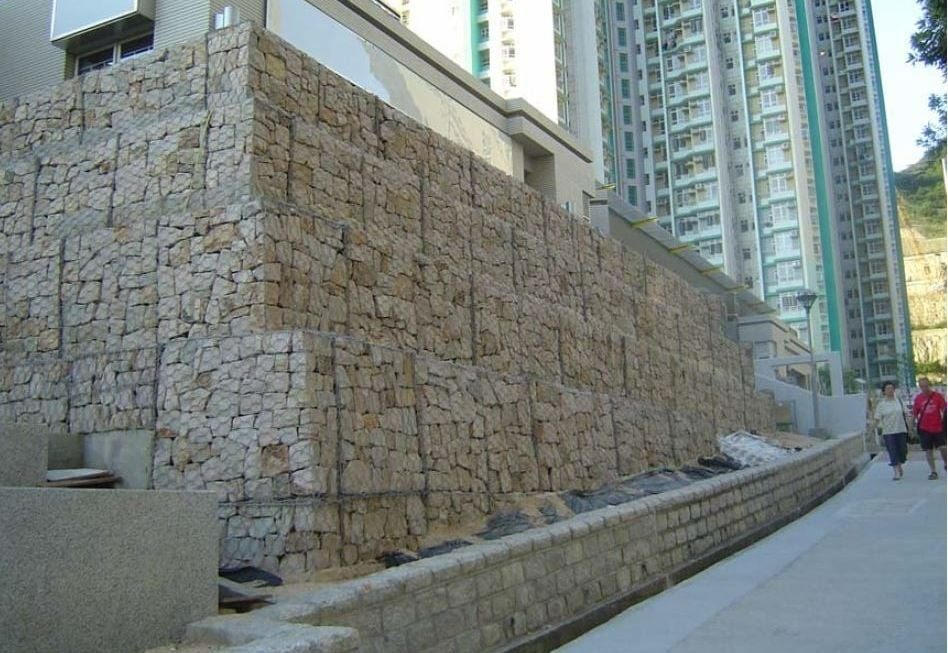

At our factory, we take pride in crafting high-quality gabion retaining walls. These versatile and sturdy structures are perfect for erosion control, slope stabilization, and enhancing landscapes. Built from durable wire mesh filled with natural stones, our gabion retaining walls are not only functional but also visually appealing.

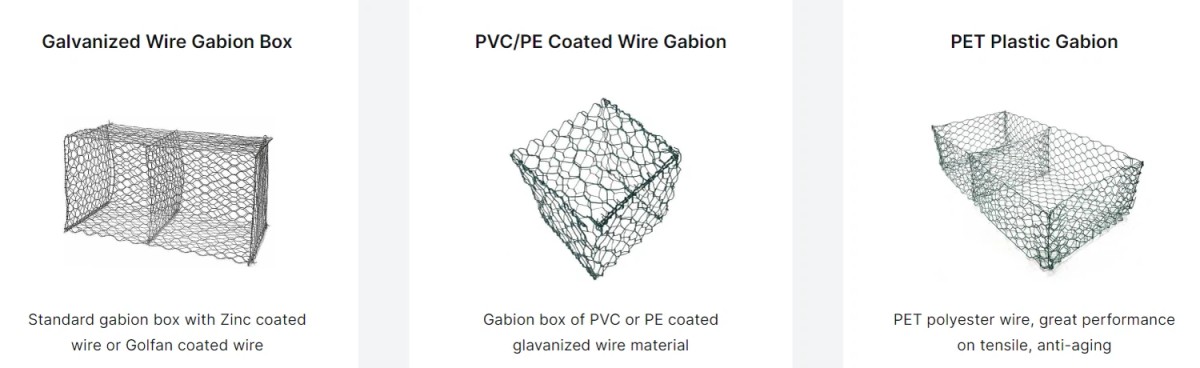

Our gabion retaining walls consist of interconnected gabion baskets. Each basket is made from galvanized steel wire or PVC-coated wire mesh, forming a robust rectangular box. Here's a breakdown of the components:

Wire Mesh: The backbone of the gabion basket, providing strength and stability.

Filling Material: Usually natural stones or rocks, giving the wall its weight and stability.

Tie Wires or Clips: Used to connect and secure the gabion baskets, creating a continuous structure.

We use the highest quality materials to construct our gabion retaining walls:

Galvanized Steel Wire: Ranging from 2.5mm to 4.0mm in diameter, offering excellent strength and corrosion resistance.

PVC-Coated Wire: Adds extra durability, especially for harsh or marine environments.

Natural Stones: Sourced from local quarries, chosen for their weight and natural drainage properties.

Working Principle

Gabion retaining walls use mass and gravity to stabilize slopes and prevent erosion. Here's how they work:

Foundation Preparation: We prepare a stable and level foundation.

Gabion Basket Assembly: Gabion baskets are assembled on-site according to the project layout.

Filling: The gabion baskets are filled with stones, providing the necessary weight.

Tying and Securing: Tie wires or clips are used to connect and secure the gabion baskets.

Stacking: Gabion baskets are stacked as needed to reach the desired height.

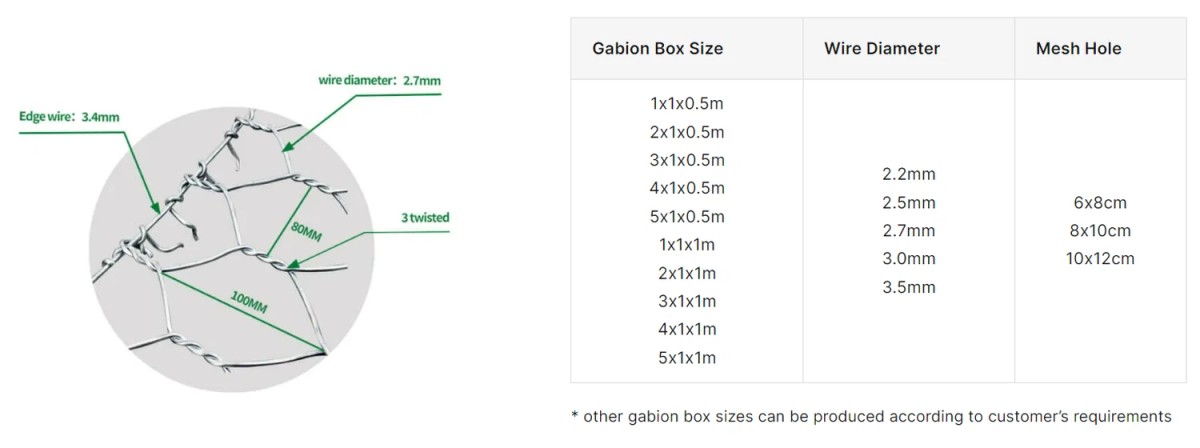

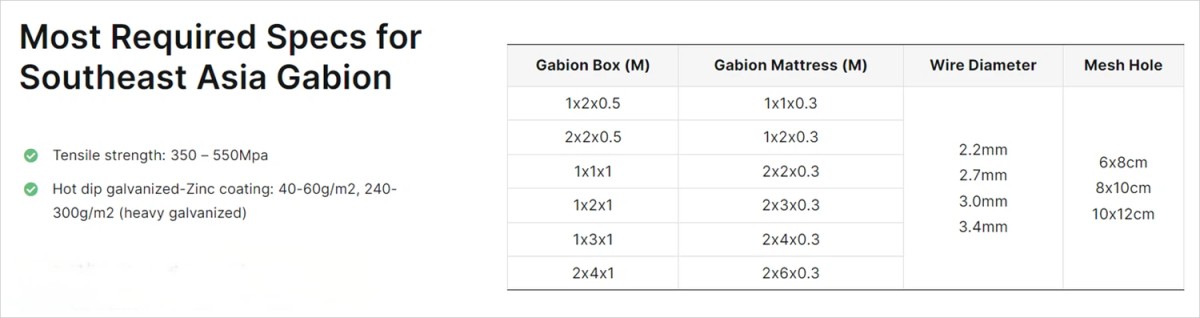

Technical Parameters

We pride ourselves on precise technical specifications:

Wire Diameter: From 2.5mm to 4.0mm, customized to meet the project's strength requirements.

Mesh Size: Includes 60mm×80mm, 80mm×100mm, and 100mm×120mm, chosen based on the size of the filling material.

Gabion Basket Size: Standard sizes are 1m×1m×1m, 2m×1m×1m, and 3m×1m×1m, customizable as needed.

Corrosion Resistance: Galvanized and PVC coatings ensure long-term use under various environmental conditions.

Product Advantages

Durability：

Our gabion retaining walls maintain their performance even in the harshest conditions.

Permeability

Gaps between the stones allow water to pass through, reducing hydrostatic pressure and preventing water buildup behind the wall.

Flexibility

Gabion walls can adapt to ground movement and settling without cracking, making them ideal for unstable soils.

Environmental Compatibility

Using natural materials, our gabion walls blend seamlessly with the environment and promote plant growth.

Cost-Effectiveness

Compared to traditional retaining walls, gabion walls are relatively simple to install, have low maintenance costs, and offer significant cost savings.

How to Choose the Right Gabion Retaining Wall

Project Requirements

Load-Bearing Capacity: For high load-bearing needs, choose gabion baskets with 4.0mm wire and 60mm×80mm mesh to ensure strength and stability.

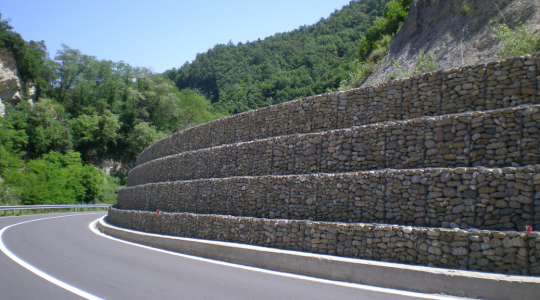

Wall Height: For higher walls, use multiple layers of gabion baskets and provide adequate anchoring and support.

Site Conditions

Soil Type: For soft or unstable soils, select larger base dimensions and additional reinforcement for the gabion walls to prevent settling and movement.

Water Flow: In high-flow areas, use gabion baskets filled with larger stones to improve drainage and reduce wall pressure.

Aesthetic Preferences

Stone Type: Choose stones that match the surrounding environment and project aesthetics. We offer various colors and sizes of stones.

Vegetation: Consider planting vegetation around or within the gabion walls to enhance the natural look and provide additional stability through root systems.

Installation Precautions

Proper installation of gabion retaining walls is crucial for their stability and longevity. Here are some key precautions:

Foundation: Ensure a stable and level foundation to support the weight of the gabion wall. If necessary, excavate and compact the foundation.

Drainage: Implement drainage measures, such as gravel backfill and perforated pipes, to prevent water buildup behind the wall.

Assembly: Assemble the gabion baskets on-site, ensuring their shape and alignment are correct.

Filling: Fill the gabion baskets with appropriate stones, distributing them evenly to avoid voids and ensure stability.

Tying: Use tie wires or clips to secure the gabion baskets together, forming a continuous and stable structure.

Stacking: Stack the gabion baskets in layers, ensuring each layer is securely connected to the one below.

Alignment: Check the alignment and verticality of the gabion wall, making necessary adjustments to ensure it is level and straight.

Compaction: Compact the filling material and surrounding soil to enhance stability and prevent settling.

By following these installation precautions, you can ensure the successful implementation of gabion retaining walls, providing long-term stability and aesthetic appeal.

Our gabion retaining walls offer a durable, flexible, and cost-effective solution for erosion control, slope stabilization, and landscape beautification. Using natural materials, they blend seamlessly with the environment while providing necessary structural support. By choosing the right size, strength, and installation method, gabion retaining walls can deliver lasting performance and aesthetic value for various projects. For more information or assistance, please contact our expert team.
