Tpo Rubber Roofing
Tpo Rubber Roofing
Tpo Rubber Roofing are the most popular waterproof materials in the world at present. It's thermoplastic elastomeric waterproof materials by adopting advanced polymerization together with squeeze technology, which perform well in mechanical properties, high tensile strength, oxidation-resistance and resistance to puncture.
facebooktwitterlinkedingoogle+
Send Inquiry

Description

Tpo Rubber Roofing are the most popular waterproof materials in the world at present. It's thermoplastic elastomeric waterproof materials by adopting advanced polymerization together with squeeze technology, which perform well in mechanical properties, high tensile strength, oxidation-resistance and resistance to puncture.

Anyone who has done waterproofing work knows that waterproofing work is a one-time concealed project. Whether its waterproof effect is excellent depends entirely on the characteristics of the material itself and the construction process. And evaluating the waterproof effect is not about whether there is water leakage in a short period of time, but about durability, with a lifespan of 10 years, 20 years, 30 years, or even the same as that of a building. A truly high-quality TPO waterproof membrane should have these advantages.
TPO waterproofing membrane is sandwiched between resin and reinforced mesh to improve its tensile strength, and it is also the basis for bonding with the mortar layer.



Products Specification of Tpo Rubber Roofing

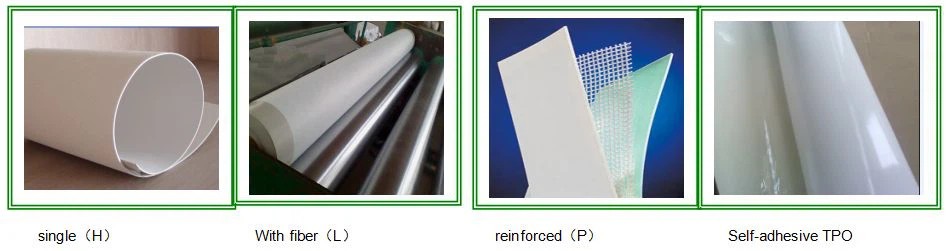

Divided by product categories: non-homogeneous composite membrane (code H), with fiber composite backing sheet (code L), fabric reinforced sheet (code P), Self-adhesive tpo waterproofing membranes.
Length: ≥20m width:1-6m
Thickness: 0.5mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm
Color: Black, White, Blue, according to customer's request. (we also offer two-color membranes)



Products galary of Tpo Rubber Roofing



20231007150437de242303711945ab90b904c755349d6b



Physical Properties of Tpo Rubber Roofing



Technical data sheets GB 27789-2011

Item

Index

H

L

P

The resin thickness of Middle fabric mm≥

-

0.40

Maximum tension N/cm ≥

-

200

250

Tension strength Mpa≥

12

-

-

Maximum tension elongation %≥



-

15

Fracture elongation %≥

500

250

-

Heat treatment size change rate %≥

2.0

1.0

0.5

Low-temperature bending

-40℃No craze



Self - adhesive layer of the physical properties of GB / T 23260-2009

No

Item

Index

1

Peel strength(N/mm)

Coil and Coil

≥1.0

Coil and aluminum

≥1.5

2

Peel strength after immersion(N/mm)

≥1.5

3

The peel strength after heat aging(N/mm)

≥1.5

4

Self - adhesive surface heat resistance

70℃, 2h No flow

5

Sticky min

≥15



Application Range of Tpo Rubber Roofing

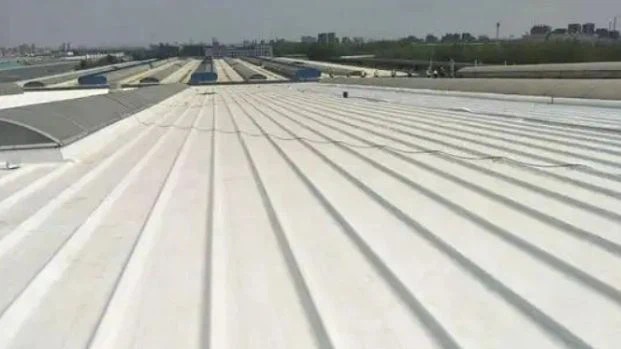

Suitable for exposed or non exposed roof waterproofing layers in buildings, as well as underground waterproofing in buildings that are prone to deformation. Especially suitable for lightweight steel structure roofs, combined with reasonable hierarchical design and qualified construction quality, it not only reduces the weight of the roof, but also has excellent energy-saving effect, and can achieve waterproofing and anti condensation. It is the preferred waterproof material for roofs of large industrial plants, public buildings, etc. It can also be used for waterproof and moisture-proof projects such as drinking water reservoirs, toilets, basements, tunnels, grain depots, subways, and reservoirs.



20231007151638098bbe9510254e898ea0cf0e4c6e249c

202310071516440682bfcce6914f2e807cdeb659f3b9bf

2023100715165190305699e93e47a19bd1d8257ecc7457
