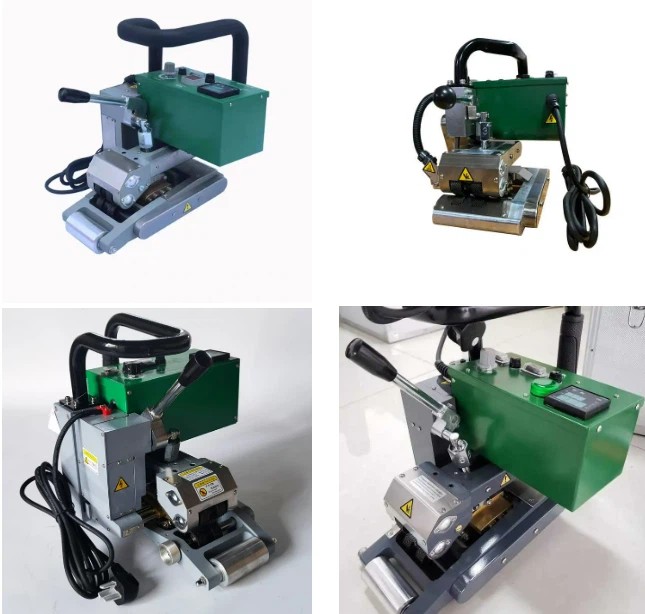

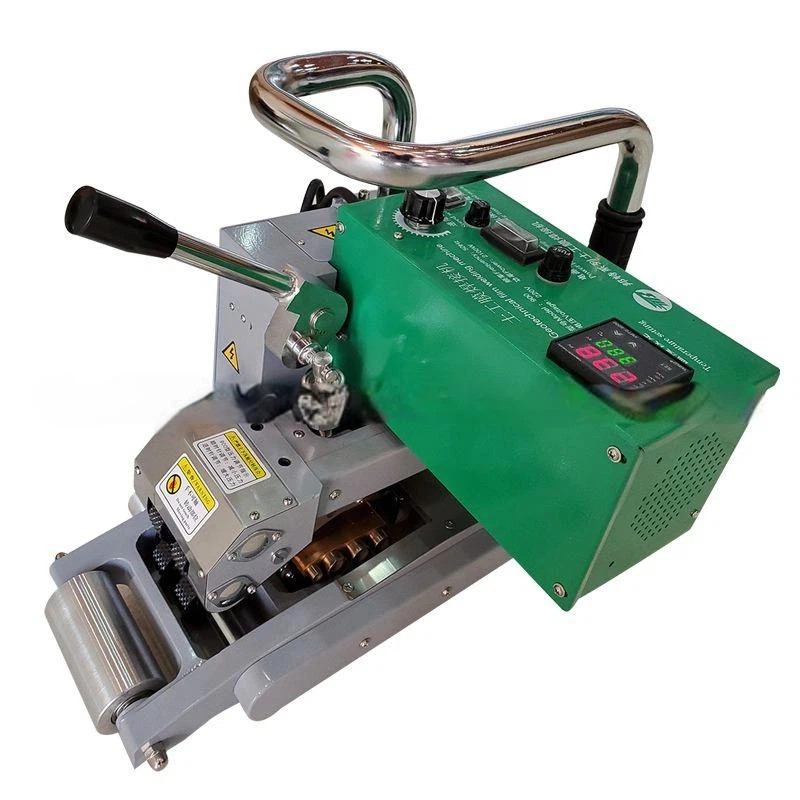

0.2-3mm HDPE LDPE LLDPE PVC geomembrane automatic welding machine

Description of geomembrane welder:
The geomembrane welding machine is suitable for welding all hot-melt materials such as HDPE, LDPE, PVC, EVA, ECB, PP, etc. It is widely used in various fields such as engineering and building waterproofing, plastic welding, industrial heating, etc. We have exported it to more than 30 countries and regions and received high praise from domestic and foreign users.

Features of geomembrane welder:
1. The control of this series of welding machines adopts PID automatic constant temperature control, with high control accuracy and small temperature fluctuations; The speed control adopts PWM automatic voltage regulation circuit, driven by DC servo motor, with large output torque and stable operation. It can maintain a constant speed under crawling, vertical crawling, and variable road loads.
2. This series of welding machines has stable performance under external temperature and voltage changes.

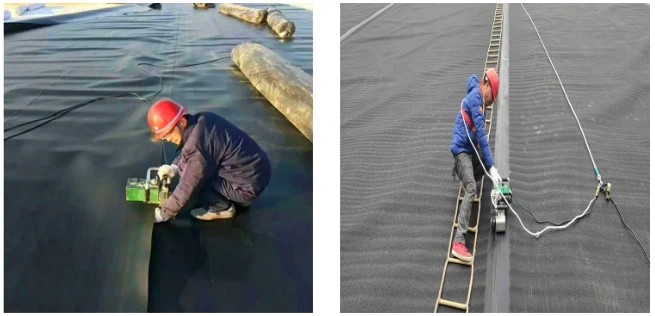

3. This series of welding machines has excellent performance, easy operation, fast welding speed, and good work quality. Widely used in engineering projects such as highways, tunnels, reservoirs, and building waterproofing.
4. The geomembrane welding machine can weld geomembranes of various thicknesses, suitable for welding all hot-melt materials such as PE, PVDF, LDPE, PVC, HDPE, EVA, PP, HDPE, EVA, etc.
5. It is small in size, light in weight, and fast in speed, which can improve welding quality even in corrosive materials and harsh working environments.

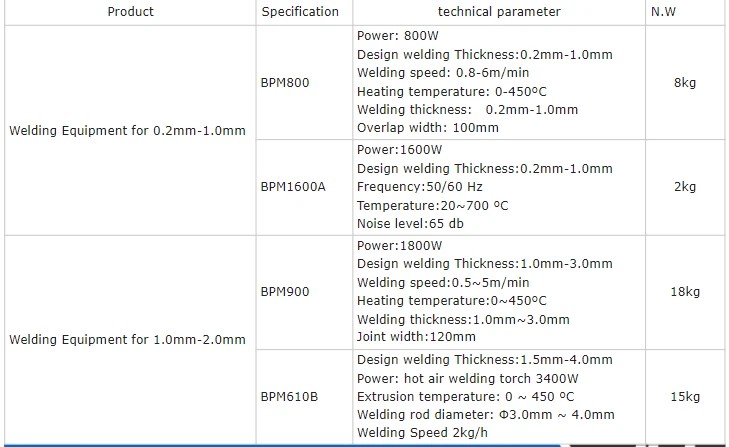

TDS of geomembrane welder:

Welding machine operating procedures:
1.Use a grounded 3-code power cord and a 3-hole socket with a capacity of not less than 10A (corresponding to the welding machine plug, L-terminal live wire, N-terminal neutral wire, phase grounding protection wire), and confirm that the external circuit is well connected. Check if the power is in the on/off state, adjust the temperature control potentiometer and speed control potentiometer to the 0 position, press the lever handle to release the pressure roller, and then insert the plug.
2. Turn on the power, select a certain temperature and speed, and take several narrow materials for trial welding. The temperature selection for the same material may vary under different environmental temperatures and material thicknesses. To determine the optimal welding effect, adjust the speed to about 2m/min and then finely increase it from low temperature to high temperature (about 250 º C-350).
3. Trim the edge and front of the weld seam flat and straight, overlapping the lower left and upper right. The overlap width is 100mm.
4. After determining the temperature and speed, insert the material to be welded between two pressure rollers, making the body parallel to the edge of the substrate, and engage the pressure rod handle for appropriate movement. Generally speaking, operators only need to observe the deviation between the welding mark and the substrate, and make minor corrections in a timely manner.
5. After welding is completed, press the lever handle in a timely manner and release the upper and lower pressure rollers to prevent the rubber wheel from being damaged for a long time.
Due to thermal inertia, there may be temperatures that are too high or too low. In this case, temperature deviation can be compensated for through small speed adjustments.

FAQ

1.Are you a factory or trading company? Where is your company located?

We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane, geocell, geogrid etc. with lS09001 certificate more than 20 years.

2.Can you provide a sample for us?

Yes, we can send free samples, but customer need to pay the freight.

3.Can you do OEM?

Yes, we can produce the products as your request.

4.What is your payment terms?

T/T, Western Union, Paypal, L/C…

5.What is your delivery time?

Production time usually costs 2-20 days based on the order.

6.Where is your factory located? How can l visit there?

Welcome to visit our factory and it is our great pleasure. Our factory is located is Dezhou City , Shandong Province.

7.What's your MOQ? Can l order small quantity for testing at first order?

For new client, we accept small order for building mutual trust and long-term business relationship.
