Selecting the right geotextile is crucial for ensuring the success and durability of various engineering and construction applications. Geotextiles are versatile materials used for soil stabilization, erosion control, filtration, drainage, and reinforcement. To choose the appropriate geotextile, several factors need to be considered, including project type, soil conditions, mechanical properties, and environmental factors. This article provides a comprehensive guide on how to select the right geotextile, complete with relevant indicators, data, and project examples.

Understanding the Types and Functions of Geotextiles

Geotextiles can broadly be categorized into two types: woven geotextiles and non-woven geotextiles.

Woven Geotextiles: Made by weaving fibers together, these geotextiles have high tensile strength and are mainly used for reinforcement and separation purposes.

Non-Woven Geotextiles: Produced by mechanically, chemically, or thermally bonding fibers, non-woven geotextiles are known for their excellent filtration and drainage properties.

Functions of Geotextiles

Geotextiles serve various functions in construction and engineering projects, including:

Separation: Preventing the mixing of different soil layers.

Reinforcement: Providing additional strength to weak soils.

Filtration: Allowing water to pass through while retaining soil particles.

Drainage: Facilitating the movement of water within the soil.

Erosion Control: Protecting soil surfaces from erosion caused by water or wind.

Key Indicators for Selecting Geotextiles

When selecting a geotextile, several key indicators should be considered to ensure it meets project requirements.

Tensile Strength

Definition: The maximum stress a geotextile can withstand when stretched or pulled.

Measurement: Typically measured in kilonewtons per meter (kN/m).

Application: High tensile strength is crucial for reinforcement applications. For example, a geotextile with a tensile strength of 20 kN/m is suitable for road construction.

Elongation

Definition: The extent to which a geotextile can stretch before breaking under stress.

Measurement: Expressed as a percentage.

Application: Higher elongation values indicate greater flexibility, which is useful for applications requiring adaptation to irregular surfaces (e.g., erosion control mats).

Permeability

Definition: The ability of a geotextile to allow liquids to pass through.

Measurement: Typically measured in centimeters per second (cm/s).

Application: High permeability is crucial for filtration and drainage applications. For example, a permeability of 0.1 cm/s is suitable for drainage layers in landfills.

Puncture Resistance

Definition: The ability of a geotextile to resist puncture forces.

Measurement: Measured in kilonewtons (kN).

Application: High puncture resistance is essential for applications involving sharp objects or heavy loads, such as under gravel roads.

Apparent Opening Size (AOS)

Definition: The maximum size of soil particles that a geotextile allows to pass through.

Measurement: Expressed in millimeters (mm).

Application: AOS should be selected based on soil particle sizes to ensure effective filtration. For fine-grained soils, an AOS of 0.1 mm may be appropriate.

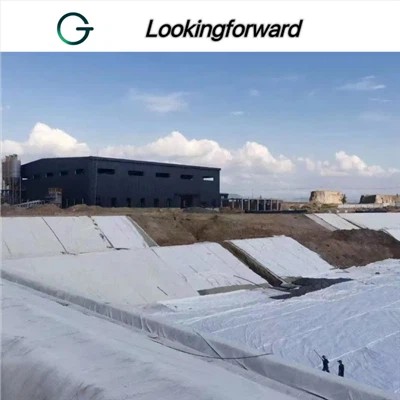

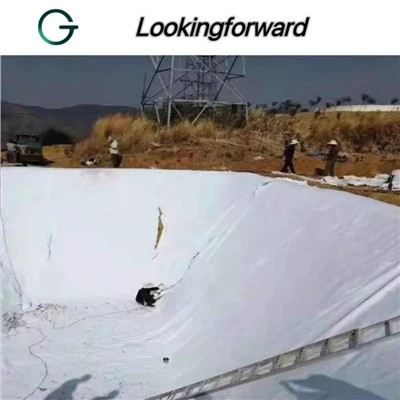

Geotextile Installation Methods

Proper installation methods are crucial for ensuring the effectiveness and durability of geotextiles. Here are the main steps for installing geotextiles:

Pre-Installation Preparation

Site Clearing: Remove all debris, trees, shrubs, and other obstructions from the site.

Surface Leveling: Ensure the installation surface is smooth to prevent uneven stress on the geotextile.

Geotextile Placement

Unrolling the Geotextile: Unroll the geotextile and ensure it is in close contact with the ground, avoiding wrinkles or gaps.

Securing the Geotextile: Use stakes or other methods to secure the geotextile to the ground, ensuring stability.

Seam Treatment

Overlap: Overlap the seams of the geotextile, typically recommended at 30-50 cm.

Seam Reinforcement: Reinforce seams using sewing or thermal bonding to ensure strength and sealing.

Backfilling and Protection

Backfill Material: Place a layer of backfill material, such as gravel or sand, on top of the geotextile to form a protective layer.

Compacting the Backfill: Compact the backfill material to ensure density and stability.

Project Examples

Example 1: Road Construction

Project Description: A rural road in Qingdao, China, needed reinforcement to prevent rutting and improve load distribution.

Selected Geotextile: A woven geotextile with a tensile strength of 20 kN/m, elongation of 10%, and AOS of 0.2 mm was chosen.

Outcome: The geotextile provided effective reinforcement, resulting in a stable road surface and reduced maintenance costs.

Example 2: Landfill Liner

Project Description: A landfill site in Santiago, Chile, required a liner system to prevent leachate contamination of groundwater.

Selected Geotextile: A non-woven geotextile with high permeability (0.1 cm/s), high puncture resistance (3 kN), and AOS of 0.15 mm was used.

Outcome: The geotextile effectively separated waste material and facilitated drainage, ensuring environmental protection.

Example 3: Coastal Erosion Control

Project Description: A coastal area in Guangzhou, China, was experiencing severe erosion due to wave action.

Selected Geotextile: A non-woven geotextile with high elongation (50%), moderate tensile strength (15 kN/m), and AOS of 0.25 mm was installed.

Outcome: The geotextile provided excellent erosion control, protecting the coastline and promoting vegetation growth.

Case Study: Geotextile Selection for Dam Repair

Project Background

Location: A dam in Hubei Province, China.

Objective: Repair the dam and prevent leakage.

Site Conditions

Soil Type: Poorly draining silty clay.

Hydrological Conditions: High water levels with significant seasonal variations.

Geotextile Requirements

Leakage Control: High filtration capacity to prevent soil loss while allowing water to pass through.

Reinforcement: Adequate tensile strength to stabilize the dam structure.

Durability: Resistance to chemical and biological degradation.

Selected Geotextile

Type: Non-woven geotextile.

Tensile Strength: 25 kN/m.

Permeability: 0.05 cm/s.

Puncture Resistance: 4 kN.

AOS: 0.1 mm.

Installation Process

Site Preparation: Remove vegetation and level the surface.

Geotextile Placement: Lay out the geotextile to cover the entire area.

Seam Treatment: Overlap geotextile sections and use thermal bonding for seams.

Backfilling: Place a protective layer of gravel over the geotextile.

Project Outcome

Performance: The geotextile effectively controlled leakage, prevented soil erosion, and enhanced dam stability.

Cost Efficiency: Reduced maintenance costs due to improved durability and performance.

Environmental Impact: Minimized soil loss and protected surrounding ecosystems.

Selecting the right geotextile requires an understanding of specific application needs and evaluating key indicators such as tensile strength, elongation, permeability, puncture resistance, and apparent opening size. By considering these factors and reviewing successful project examples, engineers and project managers can make informed decisions to ensure optimal geotextile performance and longevity.

Additional Resources

Standards and Guidelines: Refer to international standards such as ASTM and ISO for detailed specifications and testing methods.

Supplier Consultation: Consult with geotextile suppliers to obtain material samples, technical data, and expert advice.

On-Site Testing: Conduct on-site tests to ensure the selected geotextile meets the project requirements.
