1. Introduction: The Challenge of Heap Leach Containment
Heap leaching has become one of the most efficient and widely used extraction processes in the mining industry - particularly for gold, copper, and uranium.
However, the method also introduces a major engineering challenge: how to safely contain highly acidic and chemical-laden leachate solutions without polluting the surrounding soil and groundwater.
A well-designed heap leach pond liner system is the key. It prevents seepage, corrosion, and contamination, ensuring the entire operation runs safely and sustainably.
Among the different lining materials available, PVC geomembrana has proven to be an ideal solution for heap leach ponds and process containment.
It combines excellent flexibility, strong chemical resistance, and superior weldability, making it suitable for complex mining environments.
As a China geomembrana manufacturer with extensive mining project experience, we'll explore how PVC geomembrana performs as a reliable anti-seepage and anti-corrosion material in heap leaching applications.
2. What Is a Heap Leach Pond and Why Is Lining Important?
In heap leaching, mined ore is stacked in large heaps, and a leaching solution (usually sulfuric acid or cyanide-based) is sprayed over the surface.
The solution percolates through the heap, dissolving valuable metals, which are then collected in ponds or collection basins for processing.
Without a proper liner, these chemical solutions can infiltrate into the ground, causing severe environmental damage and loss of valuable leachate.
That's why geomembrana liners - particularly PVC and HDPE - are standard in modern mining design.
The liner must:
Prevent seepage into the ground
Resist strong acids and heavy metals
Withstand UV exposure and temperature extremes
Remain flexible under mechanical stress
PVC geomembrana, with its balance of flexibility, impermeability, and chemical resistance, offers a cost-effective and durable solution for these demands.
3. Why PVC Geomembrana Is Suitable for Mining Applications
PVC geomembrana (Polyvinyl Chloride liner) is a synthetic, waterproof polymer sheet that forms a continuous barrier against liquids and gases.
In mining environments, it provides:
Excellent impermeability – prevents acid and heavy metal leakage.
Chemical and corrosion resistance – withstands aggressive leachate and process fluids.
Superior flexibility – conforms to uneven subgrade surfaces.
Ease of installation – fast welding, lower labor cost.
Durability in extreme conditions – reliable from –25°C to +60°C.
Typical specifications for PVC geomembrana used in mining:
Thickness: 1.0–2.0 mm (standard for heap leach liners)
Tensile Strength: ≥ 16 MPa
Elongation at Break: ≥ 250%
Hydraulic Conductivity: ≤ 1.0 × 10⁻¹³ cm/s
Service Life: 20+ years under moderate exposure
These properties make PVC geomembrana particularly effective for heap leach ponds, process solution ponds, tailings storage, and evaporation basins.
4. Material Composition and Anti-Corrosion Mechanism
PVC geomembrana is engineered with a multi-component formulation designed to resist both mechanical and chemical degradation.
Unlike some rigid polymers, PVC geomembrana's plasticized molecular structure allows it to absorb strain without cracking, even when exposed to aggressive acids or mining chemicals.
This property is crucial in heap leach pads where liners face dynamic loading, temperature variation, and long-term chemical contact.
5. Comparison: PVC vs. HDPE in Heap Leach Applications
While both PVC and HDPE geomembranas are widely used in mining, their behavior differs significantly.
? Key takeaway:
PVC geomembrana suits irregular or sloped ponds where flexibility and close surface contact are vital.
HDPE geomembrana performs best in large, flat areas with heavy chemical load.
For heap leach ponds, where subgrade conditions are rarely uniform, PVC's adaptability and easy installation often make it the more practical option.
6. Design Considerations for PVC Geomembrana Lining Systems
6.1 Subgrade Preparation
The base must be compacted and free of sharp rocks or debris.
A protective geotextile layer (nonwoven, 300–600 g/m²) is recommended beneath the liner to prevent puncture.
Slopes should be designed with gentle transitions (≤1:3) to reduce membrane stress.

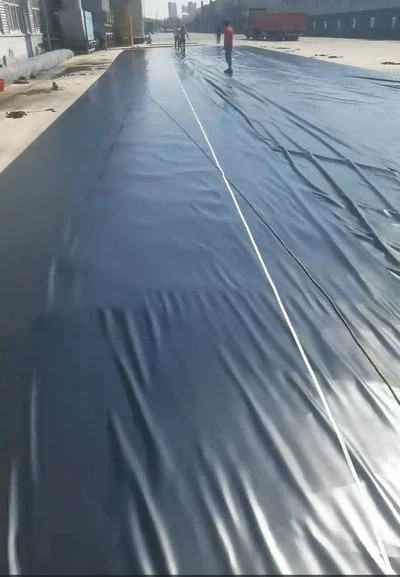

6.2 Liner Layout and Seaming
PVC sheets are factory-fabricated into large panels (5–7 m wide).
On-site, panels are joined using hot-air welding or chemical solvent seams.
Seams should be tested using vacuum box or air pressure methods to ensure integrity.
6.3 Anchoring and Edge Treatment
Edges of the liner are typically anchored into trench systems around the pond perimeter.
Anchor trenches are backfilled with compacted soil to lock the membrane securely.
6.4 Drainage and Protection
A drainage layer above the liner (such as gravel or geonet) helps relieve hydrostatic pressure.
If the liner is exposed, UV-resistant PVC formulations should be used.
7. Anti-Corrosion Performance in Heap Leach Environments
Heap leach ponds are exposed to:
Sulfuric acid (pH < 2) for copper leaching
Cyanide solution for gold and silver recovery
High temperatures and intense sunlight in open-pit mines
PVC geomembrana's chemical stability allows it to resist acid and oxidizing agents without losing elasticity or forming cracks.
Additionally, heat stabilizers and UV absorbers prevent polymer chain degradation, maintaining barrier performance over time.
Field data from copper mines in Chile, Peru, and Inner Mongolia show that PVC liners maintain impermeability and weld integrity even after years of exposure to acidic leachate solutions.
8. Installation Advantages of PVC Geomembrana in Mining Projects
Fast Deployment:
Wide panels reduce the number of seams and welding time, cutting installation schedules by up to 30%.
Ease of Welding:
Can be welded at lower temperatures and in variable weather conditions compared to HDPE.
Excellent Conformability:
Adapts to uneven ground and side slopes, ensuring tight contact with the subgrade.
Repairability:
Localized damage can be quickly patched using hot-air equipment.
Lightweight Rolls:
Easier handling, transportation, and on-site logistics.
These features are particularly valued in remote mining areas, where equipment and skilled labor may be limited.
9. Quality Control and Testing
To guarantee long-term performance, all PVC geomembrana liners must undergo strict factory and field testing:
Tensile strength and elongation tests (ASTM D882 / GB/T 13022)
Hydraulic conductivity tests (ASTM D5084)
Seam peel and shear tests (ASTM D6392)
Chemical immersion resistance tests
UV aging simulation (QUV)
Our production follows ISO 9001 and ASTM D7176 standards, ensuring consistency from raw material selection to final inspection.
Each roll is tracked with a batch identification number, enabling full traceability throughout the project lifecycle.
10. Case Study: PVC Geomembrana in a Copper Mine Heap Leach Project
Location: Inner Mongolia, China
Application: Heap leach pond liner and pregnant solution storage pond
Area: 210,000 m²
Liner Material: 1.5 mm PVC geomembrana with 400 g/m² geotextile underlayment
Results:
Installation completed 20% faster compared to HDPE
Zero leakage reported after three rainy seasons
Surface remained flexible and intact under daily temperature swings of –15°C to +45°C
Seam tests exceeded ASTM D6392 standards
This project demonstrated how PVC geomembrana can deliver both performance and cost benefits for mining containment systems in extreme climates.
11. Environmental and Economic Benefits
PVC geomembrana supports green mining initiatives, combining durability with environmental responsibility.
12. China's Role in Global Geomembrana Supply
As the world's largest producer and exporter of PVC and HDPE geomembranas, China manufacturers have become essential partners in global mining infrastructure projects.
Modern factories now operate under:
ISO / ASTM international quality standards

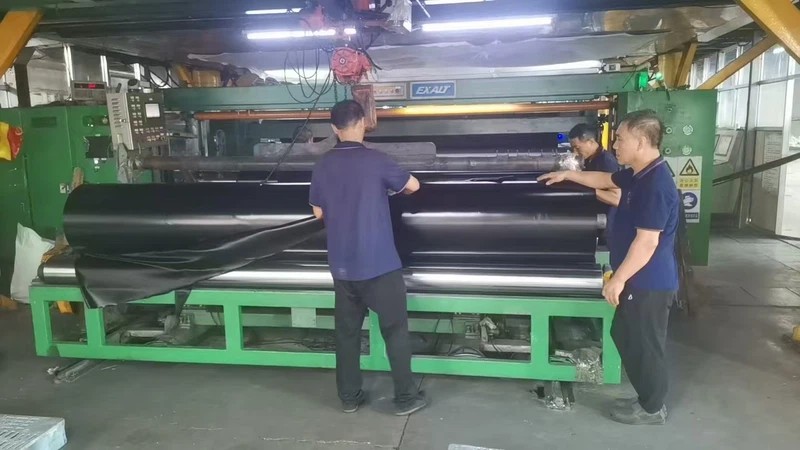

Automated calendering and extrusion equipment
Precision thickness control and edge sealing
Leading China geomembrana manufacturers provide:

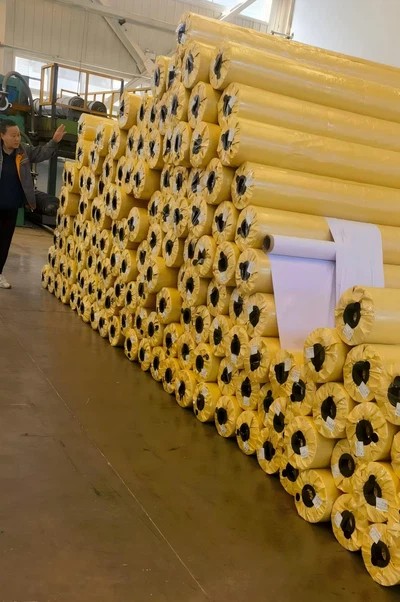

Custom width and roll lengths (up to 7 meters wide)
UV-stabilized PVC for open-air exposure
On-site technical guidance and training
Long-term supply support for large mining operations
With advanced production and competitive pricing, Chinese-made PVC geomembranas are now widely applied in Latin America, Southeast Asia, Africa, and Australia for heap leach and tailings dam projects.
13. Conclusion
PVC geomembrana is a proven, cost-effective, and durable solution for heap leach pond lining and anti-corrosion applications in mining.
Its combination of chemical resistance, flexibility, and ease of installation makes it a smart choice for modern mining operations focused on safety and sustainability.
Key advantages include:
Superior acid and UV resistance
Seamless welding and easy repair
Adaptability to irregular terrain
Reduced installation time and cost
Long-term environmental protection
As a trusted China geomembrana manufacturer, we continue to deliver tailored PVC geomembrana systems for global mining clients - helping them achieve reliable containment, reduced leakage risk, and compliance with environmental standards.
?️ PVC Geomembrana for Heap Leach Ponds:
A flexible, resilient, and eco-friendly solution - built to protect your mining operation and the environment it depends on.
